Description

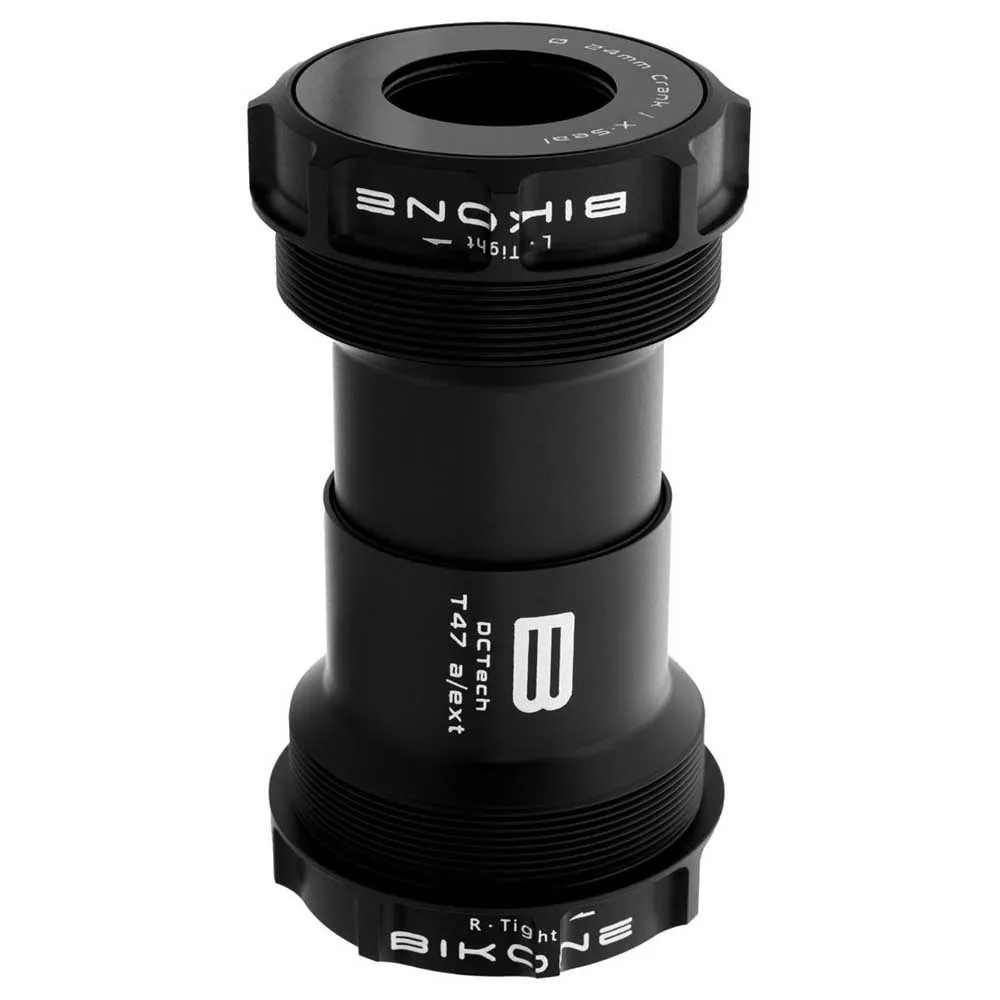

The DCTech T47 external bottom bracket for Shimano cranks is designed for cyclists who demand maximum performance and durability, whether they´re hitting the rough mountain trails or enjoying the open road.
Thanks to our dual-cup technology (DC Tech) and high-quality ceramic bearings, our bottom bracket will provide you with a smooth pedaling experience.
For proper compatibility, mountain cranks should always be mounted on mountain frames and road cranks on road frames.
Mounting Specifications.
Crankset diameter:24 mm (Shimano).
Frame width:68-73 mm (this model is available for both mountain and road bikes).
Frame diameter:T47.
For threaded frames.
This bottom bracket uses a standard T45/T47 spindle for installation and removal.
52 mm outer diameter and 48.2 mm inner diameter.
16 notches.
Weight:113 grams.
DCTech T47 External for Shimano Features.
Double-cup technology.
Two aluminum cups perfectly align the bearings on both sides, creating a solid central connection that eliminates any noise or movement.
This bottom bracket uses steel bearings (ABEC5/P5 – 2RS).
The cups of our bottom brackets are made of 7075 aluminum, a high-strength aerospace-grade aluminum to which we apply a T6 treatment.
This makes the material harder and more durable, ensuring our cups maintain optimal performance over time.
Fully sealed.
Axial seals on the bearings and full sealing on all surfaces.
This bottom bracket is compatible with the following replacements:6806 steel bearing.
6806 bearing kit for Shimano.
Adapters for PF46 / PF30 / BB30 / T47 / EVO / BBright / T45 for Shimano.
