Description

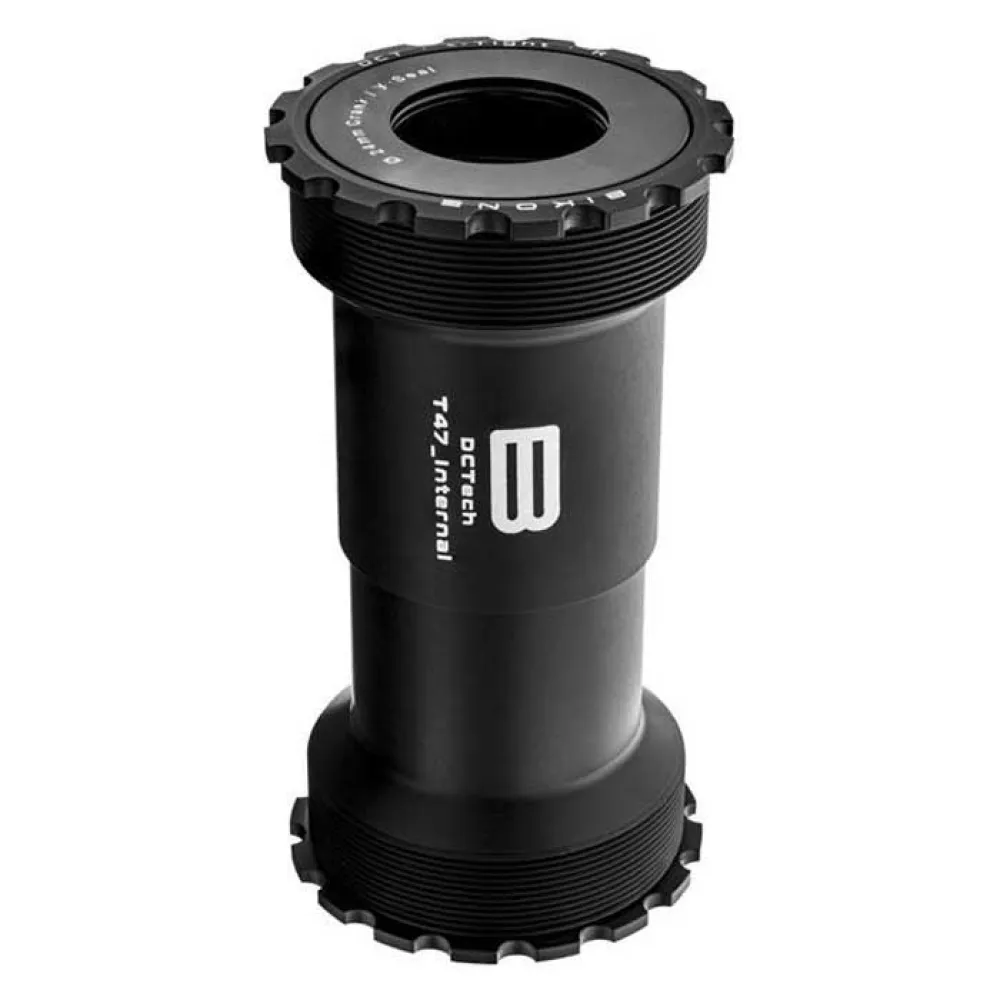

DCTech T47 Internal for Shimano cranks is designed for cyclist who demand the best in performance and durability, wheter you are teckling tough mountain trails or cruising on roads. Thanks to our Dual Cup Technology (DC Tech) and top quality bearings, our bottom bracket will make you experience the smoothest of rides.
Features:
– Dual Cup Technology. Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues.
– This bottom bracket uses Chronium Steel Bearings (ABEC5 / P5 – 2RS).
– The cups of our bottom brackets are made from 6061 Aluminium, an aerospace-grade aluminium with high corrosion resistance on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
– Fully sealed. Axial seals on bearings and fully sealed on all surfaces.
– Lighter. The number of pins on this bottom bracket has been reduced to make it lighter.
Specifications:
– Crankset diameter: 24 mm (Shimano)
– Frame width: 85,5 – 92 mm (Compatible with road and mountain bikes)
– Frame diameter: T47
– For Threaded frames
– This bottom bracket uses a regular T45/T47 for its assembly and dissasembly. Outside diameter of 52mm and Inner diameter of 48.2mm. 16 notch
– Weight: 120 grams
– Dimensions: 135 × 60 × 60 mm
Included in the box:
– DCTech T47 Internal for Shimano cranks.
This bottom bracket is compatible with the following replacements:
– 6806 Steel Bearing
– 6806 Bearing Kit for Shimano
– Adapters for PF46 / PF30 / T47 / EVO / BBright / T45 for Shimano
