Description

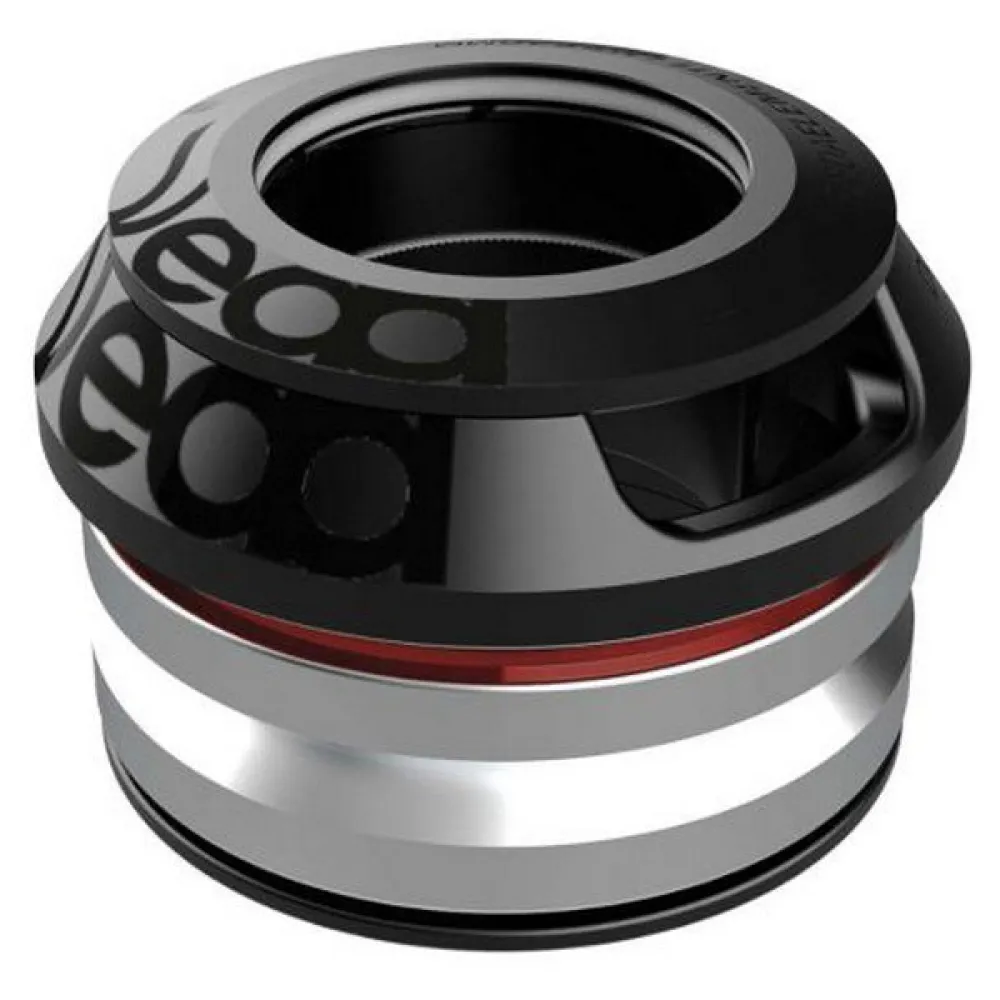

S-DCR model is an Integrated headset compatible with DCR system (Deda internal cable routing) that allows the direct cable routing into the topcover. This solution makes any Deda stems fitting a DCR frame, a quick and smart solution for most of bicycle brands. It allows the full integration of the cables ,like the DCR headset, but leaving a portion of the cables visible under the stem. The system works with a standard tapered fork steerer (1-1/8” – 1.5”) and requires a 52mm (1.5”) upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The S-DCR headset is also compatible with Deda HSS spacers for a better integration.
Specifications:
– Headset model: Integrated 1.5” – 1.5”
– Bearings type: Angular contact bearing; chrome steel
Bearings size:
– Upper 51,9 × 40 × 8 mm
– Lower 51,9 × 40 × 8 mm
– Contact angle: 45 – 45
– Headtube diameter: 56.0 mm
– Fork steerer: Tapered 1 1/8” (28.6 mm) – 1.5” (38.10 mm)
– Top cover: 56 mm
– Crown race diameter: 39.8 mm aluminum
– Stack height: 16.2 mm
– Weight: 90 g
