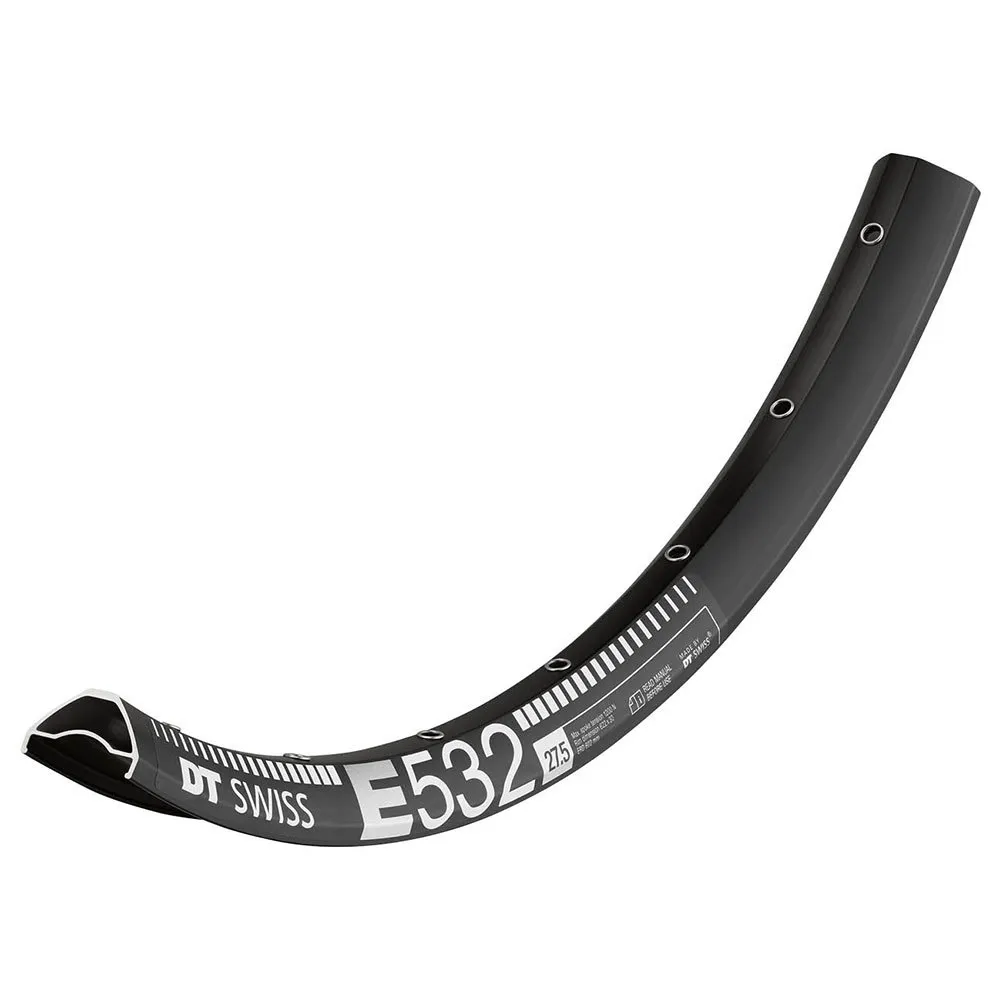

DT SWISS E 532 Disc Rim: The Benchmark for E-MTB and Enduro Performance
Unleash the full potential of your aggressive trail or e-MTB with the DT SWISS E 532 Disc rim, a masterpiece of engineering designed for the most demanding aspects of MTB Cycling. Built to withstand the increased forces and torque of modern electric mountain bikes and the relentless punishment of enduro racing, the E 532 is your foundation for a wheelset that inspires confidence on every descent and powers you through every technical climb. This rim is not just a component; it´s an upgrade in durability, stability, and control for riders who push their limits.
The core benefit of the E 532 lies in its exceptional strength and reliability. With an ASTM Classification of 4, it´s certified for rough, challenging terrain with jumps and drops, while the impressive maximum recommended system weight of 130 kg ensures it can handle powerful riders and fully-equipped e-bikes without compromise. This robustness is achieved through a smart design, featuring a proven sleeve joint construction method that provides a strong and durable connection, ensuring your wheel stays true and performs consistently ride after ride.
Performance on the trail is dramatically enhanced by its modern dimensions. The generous 30 mm inner width is perfectly matched with today´s wider trail and enduro tires. This allows your tire to spread out, creating a larger contact patch with the ground for uncompromising grip in loose corners and technical climbs. It also provides superior sidewall support, reducing tire squirm and allowing you to run lower pressures for even better traction and comfort over roots and rocks. The tubeless-ready profile (Tubeless crotched/clincher TC) ensures a secure and hassle-free tubeless setup, minimizing the risk of flats and maximizing trail feel.
Every detail is engineered for longevity. The inclusion of silver eyelets at each spoke hole evenly distributes tension from the spokes, reducing stress on the rim and preventing premature failure. This leads to a stronger, more durable wheel build that can better withstand impacts and maintain its integrity over thousands of miles of hard riding.
This specific model is the Aluminum rim for bicycles E 532 27.5 30 mm DB VI with 28 holes, featuring the standard component vinyl decal (Decal DIS no 10014908, Placement DIS no 10011534).
Specifications:
General:
– Field Of Application: E (E-MTB / Enduro)
– Product Type: 532
– Rim Joint: Sleeve joint
– Decal Type: Vinyl
– Net Weight : 580.000
– Recommended System Weight Max.: 130 kg
– ASTM Classification: 4
– Material: Aluminium
– Brake Interface: Disc
Dimensions:
– Rim Diameter: 584 mm (27.5´´ / 650B)
– Reference Diameter ERD: 564 mm
– Inner Width: 30 mm
– Outer Width: 35 mm
– Rim Height: 20 mm
– Tire Interface: Tubeless crotched/clincher TC
– Spoke Bore Rim: Silver eyelet
– Valve Hole: Presta
Holes:
– Number Of Holes: 28
Optional Accessories for Optimal Setup:
– Optional Accessory Tape: Tubeless tape 32 mm
– Optional Accessory Valve: Tubeless valve MTB 32 mm Black
