Description

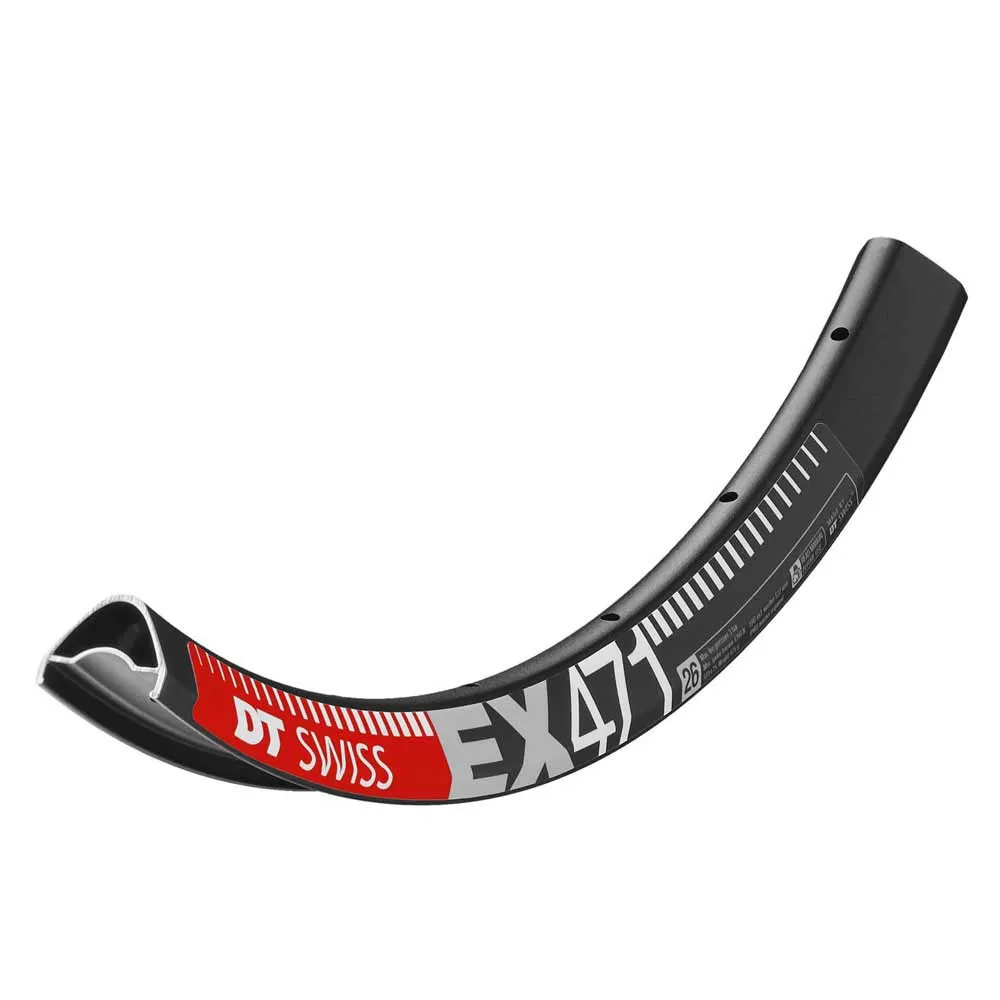

DT Swiss EX 471 Rim: The Benchmark for Enduro & All-Mountain Wheels
Discover the legendary DT Swiss EX 471 rim, the undisputed benchmark for riders who push their limits in aggressive trail, all-mountain, and enduro racing. Engineered with a legacy of podium-proven performance, the EX 471 strikes the perfect balance between uncompromising strength and an impressively low weight, making it the go-to choice for custom wheel builders and demanding mountain bikers worldwide. Build your wheels with the confidence that they can handle the most challenging descents, rock gardens, and high-impact sections, run after run.
At the heart of the EX 471´s incredible reliability is its premium welded rim joint. This superior construction method ensures maximum strength, structural integrity, and a perfectly airtight seal for flawless tubeless performance. The rim’s modern 25 mm inner width provides the ideal platform for today´s wide MTB tyres, enhancing sidewall support to deliver superior cornering grip, precise control, and reduced tyre roll, even at low pressures. This optimized tyre interface allows you to unlock the full potential of your rubber on any terrain.
Engineered for longevity and peak performance, the EX 471 features DT Swiss´s innovative PHR (Pro Head Reinforcement) washer system. By increasing the load-bearing surface of the nipples, this system distributes spoke tension more evenly and reduces localized stress on the rim. This results in a significantly more durable and reliable wheel build, designed to withstand the harshest impacts and stay true for longer. This meticulous attention to detail is why the EX 471 is trusted by professional mechanics and riders alike. Paired with the included high-end DT Pro Lock Squorx aluminium nipples, it creates a complete system for a robust and lasting wheel build.
With a robust ASTM classification of 4 and full approval for e-bike use, the EX 471 is engineered to handle the increased forces and demands of modern mountain biking, including pedal-assist systems. Whether you´re building a lightweight wheelset for an enduro race machine or a bombproof set for your hard-charging e-MTB, the DT Swiss EX 471 rim delivers the strength, reliability, and world-class performance you need to ride with absolute confidence.
Attributes: MTB Cycling, Rims
Specifications:
General:
– Field of application: EX
– Product type: 471
– Rim joint: Welded
– Net weight : 530.000
– Recommended system weight max.: 130 kg
– ASTM classification: 4
Material & Brake:
– Material: Aluminium
– Tire interface: Hooked / Crotchet tubeless TC
– Brake interface: Disc
Dimensions:
– Rim diameter: 622 mm (29´´ / 700C)
– Reference diameter ERD: 600 mm
– Inner width: 25 mm
– Outer width: 30 mm
– Rim height: 21 mm
Holes:
– Number of holes: 28
– Spoke bore rim: Non eyelet PHR
– Valve hole: Presta
Accessories:
– Inclusive Nipple kit: DT Pro Lock Squorx alu silver
– Inclusive PHR kit: Washer PHR
