Description

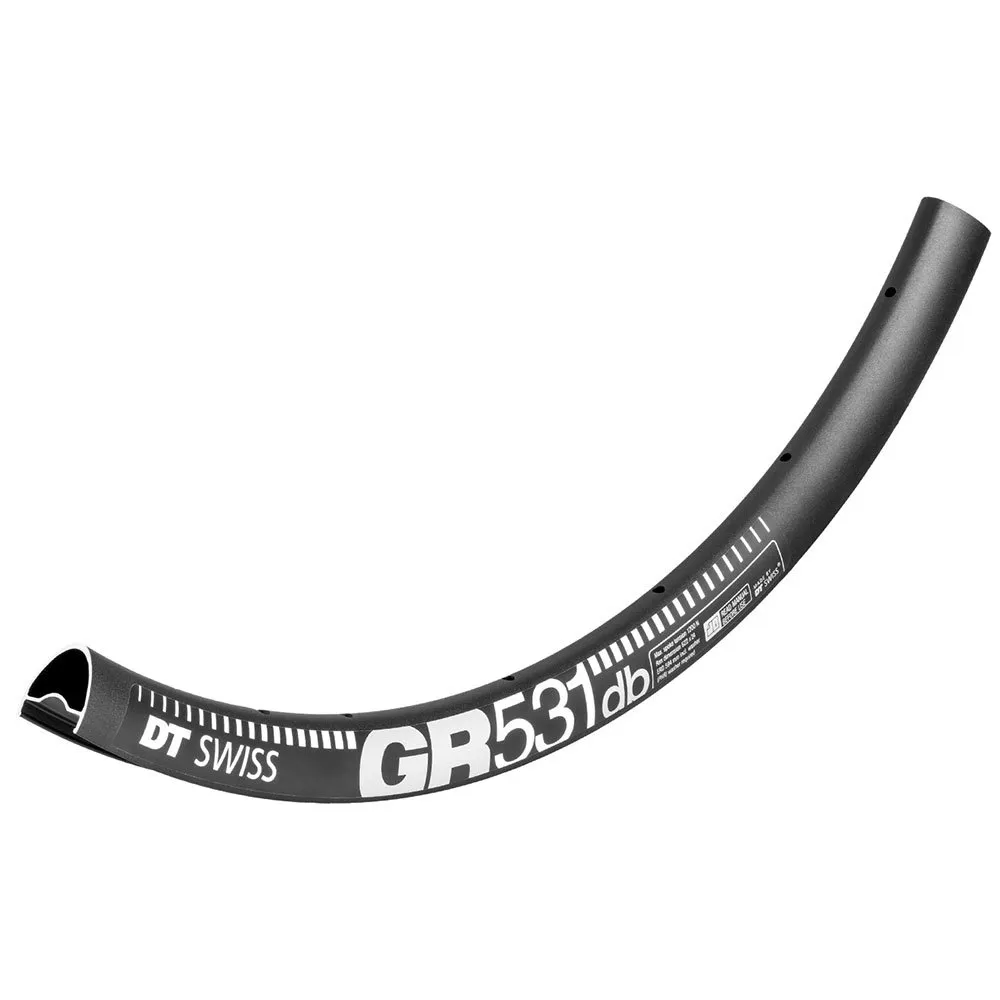

DT Swiss GR 531 Disc Rim: The Ultimate Foundation for Your Gravel Adventures
Venture beyond the pavement and embrace the spirit of exploration with the DT Swiss GR 531 Disc rim. Designed specifically for the demands of modern gravel cycling and bikepacking epics, this rim is your steadfast partner for conquering endless dirt roads, challenging singletrack, and multi-day journeys into the unknown. As a leading choice for riders who demand reliability above all else, the GR 531 provides the perfect balance of strength, performance, and durability to build a wheelset you can trust, no matter where the trail takes you.
Engineered for maximum reliability, the GR 531 is built to withstand the rigors of loaded touring and aggressive riding. Its robust profile is complemented by a high-strength welded rim joint, ensuring superior durability and a perfectly round wheel build that lasts. With a generous recommended maximum system weight of 130 kg and an ASTM Classification of 2, you can confidently load up your gear for the long haul, knowing your wheels are up to the task of supporting both you and your equipment through rugged terrain. This makes it one of the most dependable rims available for serious bikepacking and adventure cycling.
Experience enhanced comfort and control on any surface thanks to the modern 24 mm inner width. This generous dimension provides an ideal platform for wider gravel tires, allowing you to run lower pressures for a smoother ride and significantly improved traction on loose or uneven surfaces. The tubeless-ready design (TC – Tubeless Crotched/Clincher) further enhances performance, reducing the risk of pinch flats and allowing the tire to conform perfectly to the terrain for an unmatched ride feel and superior grip when cornering or climbing.
As a dedicated disc brake rim, the GR 531 provides the consistent, powerful braking performance required for navigating steep descents and variable weather conditions. The innovative spoke bore design utilizes the PHR (Pro Head Reinforcement) system, which works with specific washers to distribute stress more evenly around the spoke hole, increasing the rim´s overall fatigue resistance and longevity without the need for traditional eyelets.
This particular version of the rim for bicycles is the 24-hole DT Swiss GR 531 disc brake model, detailed with decal no. 10022565 and placement no. 10011535.
Attributes: Gravel cycling, Rims
General:
– Field Of Application: GR
– Product Type: 531
– Rim Joint: Welded
– Decal Type: Vinyl
– Net Weight : 500.000
– Recommended System Weight Max.: 130 kg
– ASTM Classification: 2
– Material: Aluminium
– Brake Interface: Disc
Dimensions:
– Rim Diameter: 584 mm (27.5´´ / 650B)
– Reference Diameter ERD: 556 mm
– Inner Width: 24 mm
– Outer Width: 28 mm
– Rim Height: 25 mm
– Tire Interface: Tubeless crotched/clincher TC
– Spoke Bore Rim: Non eyelet PHR
– Valve Hole: Presta
Holes:
– Number Of Holes: 24
Optional Accessories:
– Optional Accessory Tape: Tubeless tape 27 mm
– Optional Accessory Valve: TL valve Alu black 18 – 25 mm Black
