Description

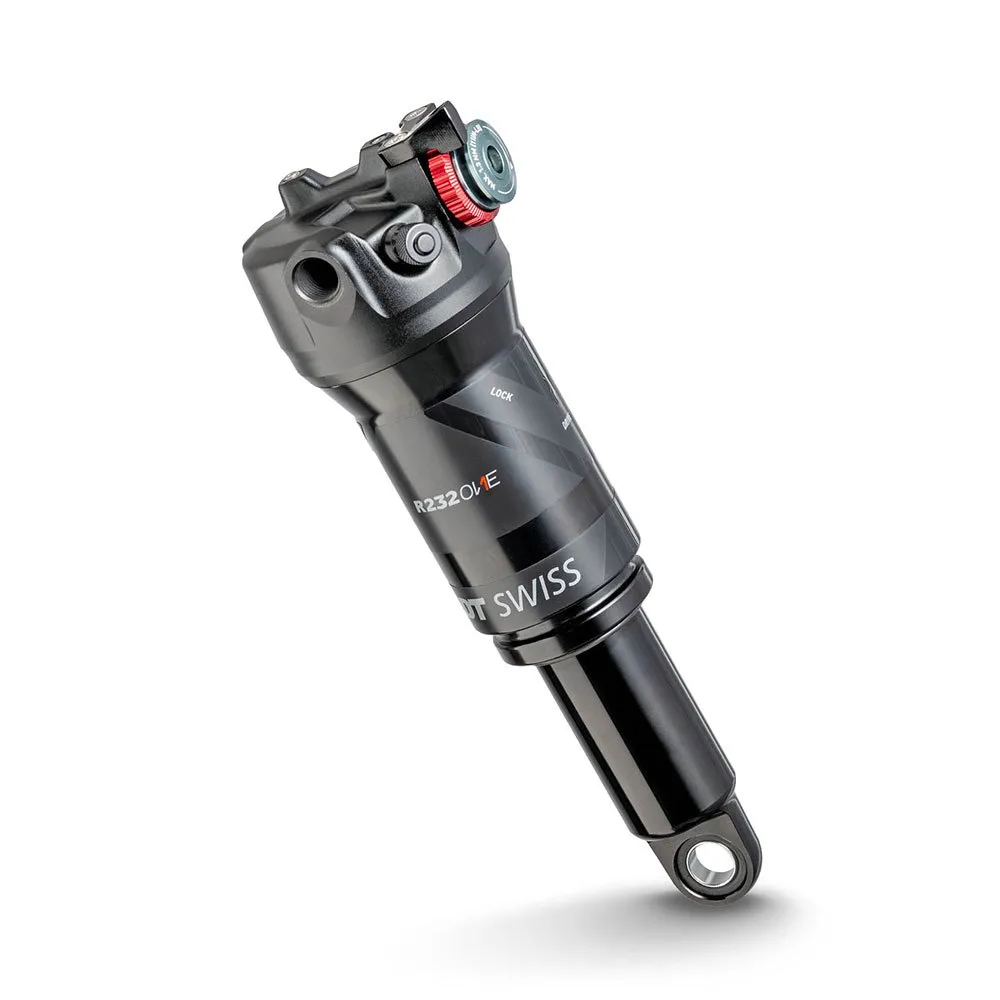

DT SWISS R 232 ONE Remote R2 Trunnion Mount Shock Absorber
Unleash your full potential on the cross-country course with the DT SWISS R 232 ONE Remote Trunnion Mount shock absorber. Engineered for the uncompromising demands of modern XC and marathon racing, this rear shock is the epitome of lightweight performance and podium-driven efficiency. When every gram and every watt of power matters, the R 232 ONE delivers the competitive edge you need to dominate climbs, carve through technical descents, and sprint for the finish line with absolute confidence.
Experience unparalleled control with the sophisticated INCONTROL damping system. This technology provides a three-position adjustment, accessible instantly from your handlebar via the included remote. Seamlessly switch between modes on the fly: engage the firm LOCK mode for explosive power transfer on smooth climbs and all-out sprints. Transition to the efficient DRIVE mode, which provides a stable pedaling platform that still absorbs impacts, making it perfect for maintaining momentum over technical terrain and fast, rolling sections. When the trail points down, switch to the fully OPEN mode to unlock maximum sensitivity and traction, allowing the shock to absorb every root and rock for a smooth, controlled descent.
The heart of the R 232 ONE is the LINEAIR spring technology, an optimized air spring system meticulously designed for cross-country performance. It offers superb small-bump sensitivity at the beginning of the stroke, ensuring your rear wheel stays planted for maximum traction. As you push deeper into the travel, a supportive mid-stroke prevents the shock from wallowing in corners and G-outs, while the progressive end-stroke provides reliable bottom-out resistance for bigger hits and drops. This linear-progressive curve gives you a predictable and supportive ride feel in any situation.
Built around the modern Trunnion mount standard, the R 232 ONE allows for a more compact design and seamless integration with contemporary XC frames. This mounting system enables a longer stroke within a shorter eye-to-eye length, which frame designers use to optimize suspension kinematics for superior performance. Weighing in at an incredibly low net weight, this shock significantly reduces your bike´s overall mass, leading to faster acceleration, more nimble handling, and less fatigue on long marathon rides. For the dedicated racer seeking the ultimate fusion of minimal weight, maximum efficiency, and precise control, the DT SWISS R 232 ONE is the definitive choice for reaching the top step of the podium.
Product Details:
Air pressure shocks for bicycles R 232 ONE Trunnion Mount
Eye-to-eye-lenght/stroke: 165/40
Remote/direction: Yes / 180°
Spring technology: LINEAIR
Damping technology: INCONTROL
Damping setup compression/rebound: Medium/Medium
Decal placement: 10025603 DEC PLACEMENT R232 TM
Specifications:
GENERAL:
– Product family: R 232 ONE
– Net weight : 281.000
– Installation length: 165 mm
– Travel: 40 mm
– Mounting system: Trunnion mount
SPRING & DAMPING:
– Spring technology: LINEAIR
– Spring adjustments: Air pressure
– Damping system: INCONTROL
– Damping adjustm. compression: INCONTROL (3-pos.)
– Damping adjustments rebound: Lowspeed rebound
TYPE:
– Remote: Remote
– Remote adjustment: R 2 (180°)
– Air chamber material: Aluminum
– Oil chamber material: Aluminum
