Description

Compact, powerful, and built for every dive — a professional-grade backup light that punches well above its size.

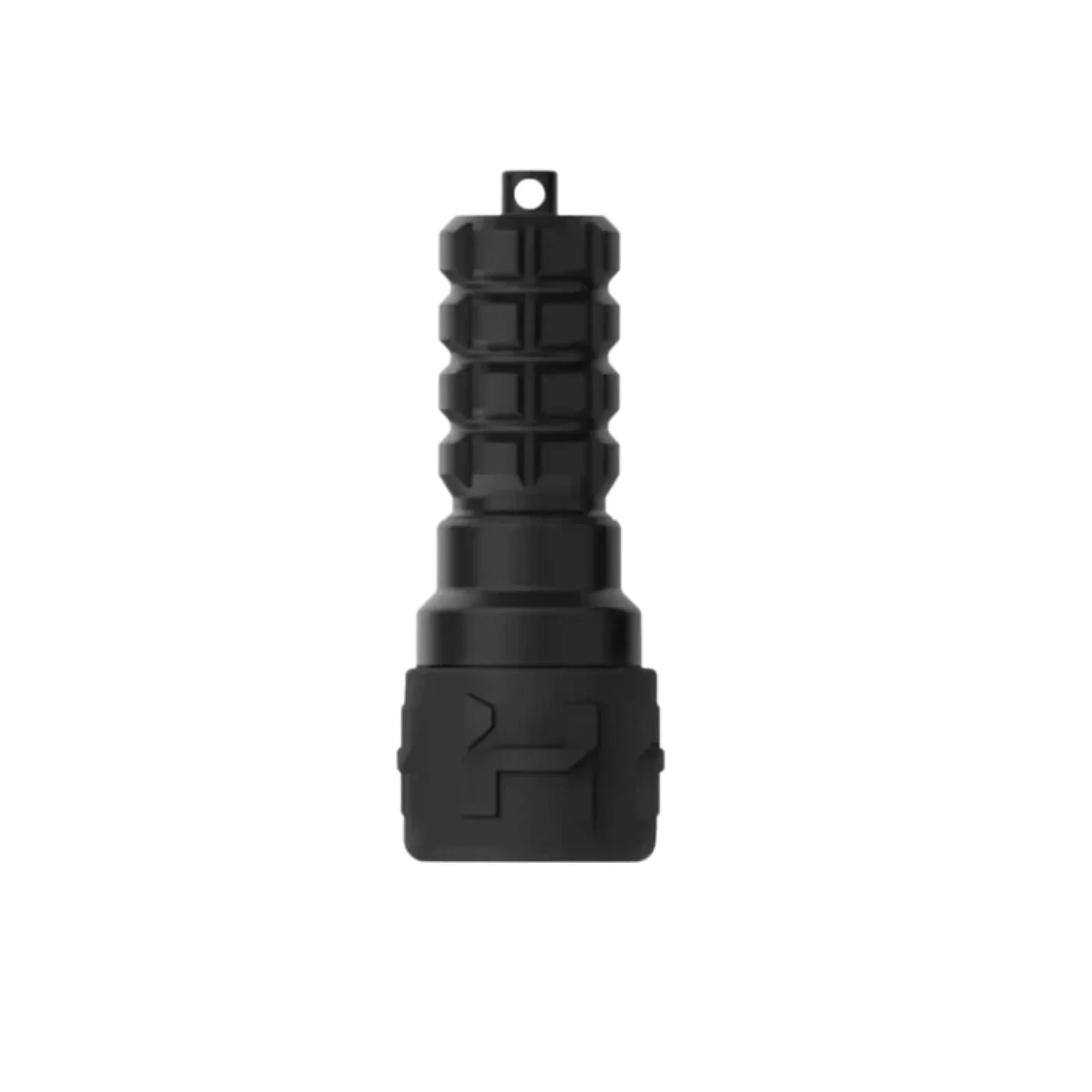

The Halcyon Mini Photon Light delivers the same impressive 1200-lumen output and narrow 9° beam as its full-size sibling — in a significantly shorter, lighter package. At just 14cm in length, the Mini Photon is engineered for divers who need a high-performance backup or secondary light without the bulk. Whether clipped to a harness, stowed as an emergency backup, or used as a primary light on recreational dives, the Mini Photon brings uncompromised Halcyon quality to the smallest possible form factor.

Built from aircraft-grade aluminium with a military-grade hard-anodised finish and triple O-ring sealing, the Mini Photon is waterproof rated to 200m and ready for technical, overhead, and night diving environments. Dual power modes, twist-on activation, and flexible battery options — including the included AAA alkaline cells or an optional Li-ion upgrade — give you full control over brightness and runtime on every dive.

The Halcyon Mini Photon is the ideal choice for divers seeking a compact, reliable light that won’t compromise on output — whether it’s riding along as a backup on technical dives or taking centre stage on recreational and night dives.

---

What’s Included:

• Halcyon Mini Photon Light — compact high-output dive torch with narrow 9° beam, dual power modes, and twist-on activation
• 3× AAA alkaline batteries — ready to use straight out of the box

---

Key Features:

• Up to 1200 lumens output — full-power illumination in a compact, lightweight body
• Narrow 9° beam angle — focused, penetrating light for signalling, spotting, and technical diving tasks
• Compact 14cm length — significantly shorter than the standard Photon, ideal for use as a backup or travel light
• Dual power settings — switch between High and Low modes to balance output and runtime
• Regulated output — consistent, stable brightness maintained throughout the battery cycle
• Overheat protection — automatic thermal management for safe, sustained performance
• Reverse polarity protection — safeguards against accidental battery misalignment
• Twist On/Off activation — intuitive and reliable operation, even with gloves
• Triple O-ring sealing — waterproof rated to 200m for deep and technical diving
• AL6061-T6 aircraft-grade aluminium body — lightweight, corrosion-resistant, and built for long-term durability
• Type III military-grade hard-anodised finish — superior surface protection against wear and saltwater exposure
• Tempered glass lens — scratch-resistant and optically clear for maximum light transmission
• Flexible battery options — run on included AAA alkaline cells or upgrade to an optional Li-ion 26650 cell for peak output

---

Runtime Performance:

Configuration	Mode	Output	Runtime
3× AAA Alkaline (included)	High	850 lumens	≈ 1 hr 40 min
3× AAA Alkaline (included)	Low	550 lumens	≈ 2 hrs 45 min
1× Li-ion 26650 (optional)	High	1200 lumens	≈ 1 hr 45 min
1× Li-ion 26650 (optional)	Low	550 lumens	≈ 3 hrs 30 min

---

Technical Specifications:

Specification	Detail
LED	Cree XM-L2 (U4)
Maximum Output	1200 lumens
Beam Angle	9° (narrow)
Power Settings	High / Low
Battery (Standard)	3× AAA alkaline
Battery (Optional Upgrade)	1× Li-ion 26650
Waterproof Rating	200m
Sealing	Triple O-ring
Body Material	AL6061-T6 aircraft-grade aluminium
Finish	Type III military-grade hard-anodised
Lens	Tempered glass
Length	14 cm
Head Width	5 cm
Body Width	3.5 cm
Activation	Twist On/Off
Manufacturer	Halcyon Dive Systems, USA

---

Maximum output, minimum footprint — the Halcyon Mini Photon Light is the smart choice for divers who demand professional-grade performance without compromising on space, weight, or portability.
