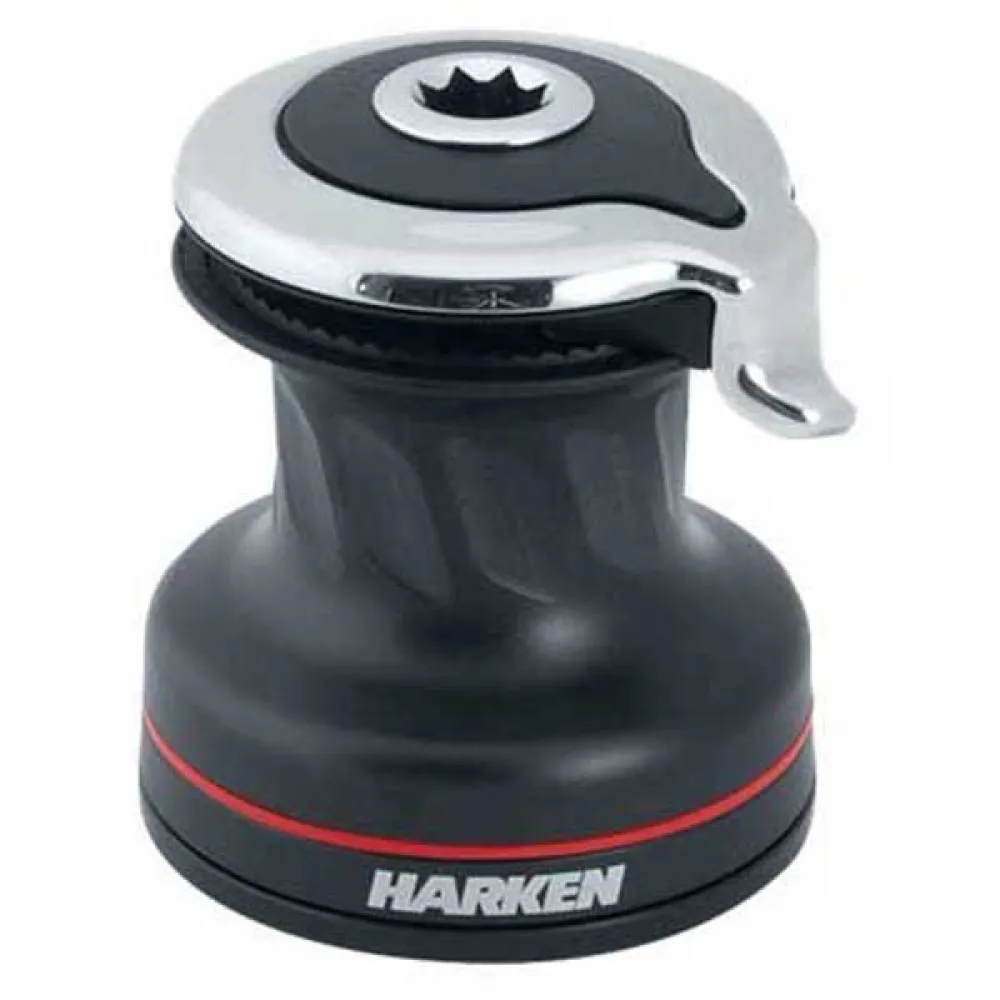

HARKEN 15STA Aluminum Radial Self-Tailing Winch
Upgrade your sailing experience with the HARKEN 15STA Aluminum Radial Self-Tailing Winch, the benchmark for reliability and performance in modern sail control. Engineered for sailors who demand precision and durability, this winch is an essential piece of equipment for any small to mid-sized sailboat, whether you are racing around the buoys or cruising the coastline. Its lightweight and robust design ensures you have the power you need, right when you need it, enhancing both safety and performance on the water.
Experience a new level of efficiency with its innovative features. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. This unique Harken design provides exceptional control when easing or trimming, while significantly extending the life of your ropes. Furthermore, the self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. This single-handed operation frees up other crew members and makes sailing short-handed a simpler, more enjoyable, and safer endeavor.
Crafted from high-grade, hardcoat-anodized aluminum, the 15STA is both remarkably light and incredibly strong, offering superior resistance to corrosion in the harsh marine environment. Its lightweight construction helps reduce weight aloft, a critical factor for performance-minded sailors. The single-speed configuration, combined with an optimized gear ratio, delivers a powerful and smooth response, allowing you to manage halyards, sheets, and control lines with minimal effort. As a vital component of your deck hardware, this winch provides dependable line management that complements your boat´s other anchoring and mooring systems, including electric and manual windlasses, ensuring comprehensive control over all onboard lines. For reliable, low-friction performance that stands the test of time, choose the Harken 15STA for your vessel.
Specifications:
– Material: Aluminum
– Configuration: Self-tailing
– Speed: 1
– Gear ratio – 1: 2.43
– Power ratio – 1: 16.90
– Weight (kg): 2.1 kg
– Weight (lb): 4.6 lb
– Minimum line Ø (mm): 6 mm
– Minimum line Ø (in): 1/4 in
– Maximum line Ø (mm): 10 mm
– Maximum line Ø (in): 3/8 in
– Drum Ø (mm): 73 mm
– Drum Ø (in): 2 7/8 in
– Base Ø (mm): 120 mm
– Base Ø (in): 4 3/4 in
– Height (mm): 139 mm
– Height (in): 5 1/2 in
– Line entry height (mm): 58 mm
– Line entry height (in): 2 1/4 in
– Number of fasteners: 5
– Fasteners (mm): 6 SH mm
– Fasteners (in): 1/4 SH in
– Fastener circle (mm): 100 mm
– Fastener circle (in): 3 15/16 in
