Description

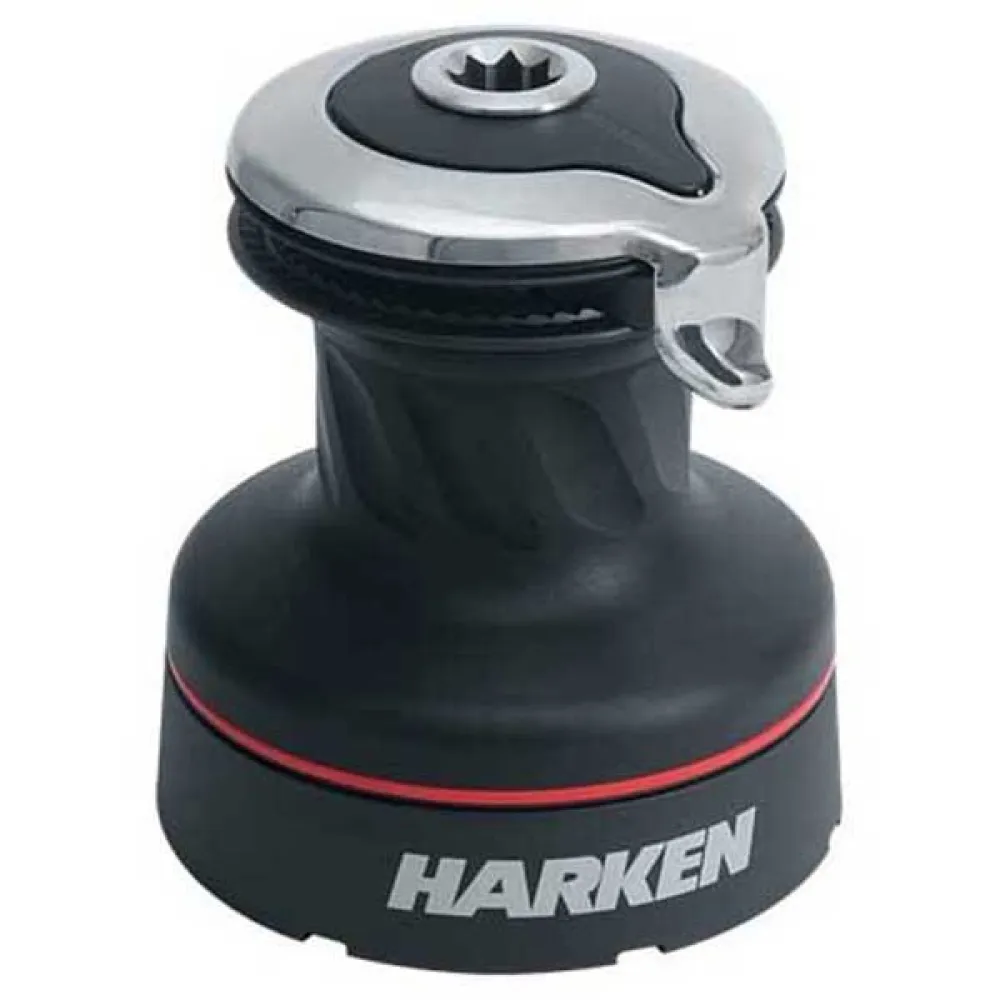

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Specifications:
– Height (mm): 170 mm
– Height (in): 6 11/16 in
– Weight (kg): 3.6 kg
– Weight (lb): 7.9 lb
– Fasteners (mm): 6 SH mm
– Fasteners (in): 1/4 SH in
– Maximum line Ø (mm): 12 mm
– Maximum line Ø (in): 1/2 in
– Configuration: Self-tailing
– Speed: 2
– Drum Ø (mm): 80 mm
– Drum Ø (in): 3 1/8 in
– Base Ø (mm): 149 mm
– Base Ø (in): 5 7/8 in
– Line entry height (mm): 79 mm
– Line entry height (in): 3 1/8 in
– Minimum line Ø (mm): 8 mm
– Minimum line Ø (in): 5/16 in
– Fastener circle (in): 4 7/8 in
– Fastener circle (mm): 123 mm
– Number of fasteners: 5
– Gear ratio – 1: 2.13
– Gear ratio – 2: 5.65
– Power ratio – 1: 13.50
– Power ratio – 2: 35.90
– Material: Aluminum
