Description

Body:Composite.
Axle:Chromoly.
Composite body.
Retention:8 to 12.
Platform Area:400 MM².
Weight (per Pedal=single weight):140 g.
Cleats:Keo Grip.

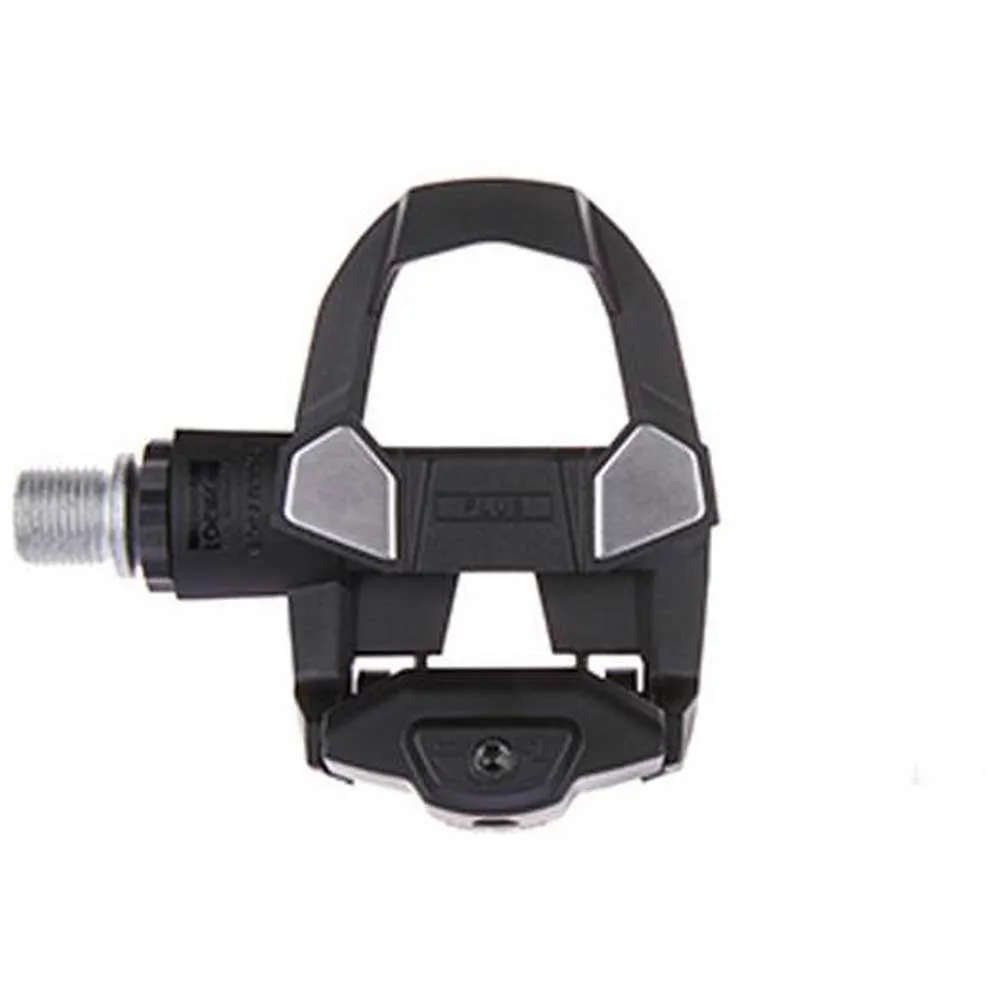

-KÉO CLASSIC 3 Plus.
Discover the fun and the benefits of riding with the Kéo Classic 3 plus clipless pedal.
Simple to use, it is possible to adjustment the cleat entry/release tension to low for an easy clip out.
Its large and wide contact surface provides excellent pedaling stability.
FEATURES:
Usage:Beginner to advanced.
Body:Composite.
Axle Chromoly.
Platfrom Material:Stainless Steel.
Threading:9/16 X 20 mm.
Bearings:1 ball bearing, 1 needle bearing cartridge.
Pedal stack height:15,7 mm.
Distance pedal spindle / crank arm:53 mm.
Contact surface area:400 mm².
Float:8 to 12 adjustable spring.
Cleats:Kéo Grip Cleats.
Angular movement:0 °, 4.5 ° or 9 ° according to the cleat color (Black, Grey, Red).
Pedal weight:140 gr (348 gr per pair with cleats and screws).
Colours:Black.
Accessoires:A pair of Grey Kéo Grip cleats + screws.
Guaranty:2 years.
TECHNOLOGIES:CHROMOLY SPINDLE FOR MORE RELIABILITY.
The Kéo Classic 3 spindle is made up of an oversized steel axle with miniature ball bearings (12 mm inside x 18 mm outside) and a needle bearing cartridge for improved wear resistance.
A spacer is used to hold the needle bearing cartridge in place.
A new method of fitting the spindle into the pedal body also ensures the prolonged reliability of our pedals.
LOOK spindles are only approved after a rotational test of 2 million cycles at 100tr/min with a load of 90kg on the center of the pedal and an eccentric rotation (creating a shock on each rotation).
LOOK axles are only approved after a rotational test of 2 million cycles at 100 rpm with a load of 90 kg on the center of the pedal and an eccentric rotation (which creates stress on each revolution).
This is equivalent to a sprint by André GREIPEL of 1700 watts at 100 rpm for 333 hours! This test is much more demanding than the current standard, the ISO 4210.
