Description

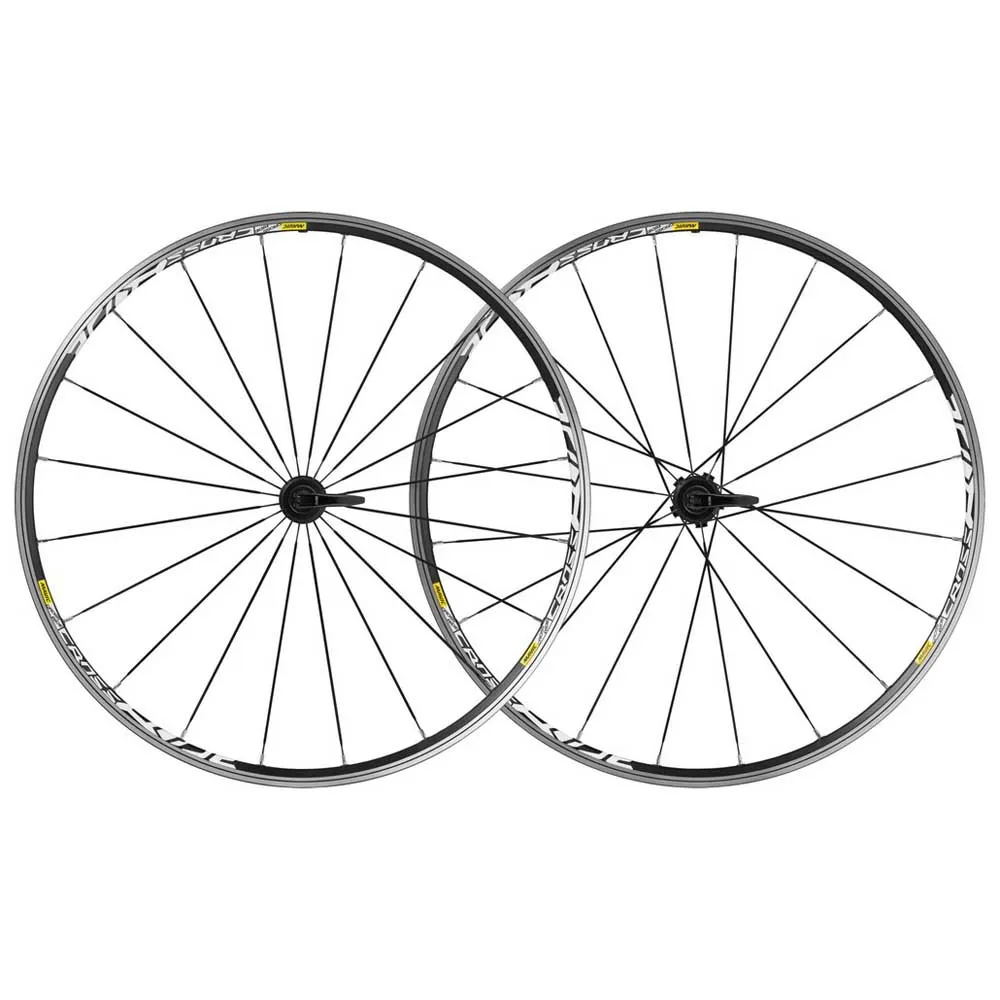

For those who still prefer the lightweight simplicity of rim brakes, the Crossride UB is a smart choice for off-road versatility. The rim is built specifically for rim brakes and features our H2 reinforcement at the spoke holes for added strength and durability. And at just 1700g for the wheelset, it’s a lightweight option for better handling and easier climbing. The Crossride UB is only available for rim brakes and is compatible with frames and forks using standard quick releases.
Features:
Lightweight wheel system to enhance your rim brake mountain bike:
– Wheelset weighs only 1700g System engineered for overall performance Hub efficiency with FTS-X freehub and smooth QRM bearings
Strong and durable for long-lasting performance:
– Reinforced rims feature H2 spoke drilling for increased lifespan Proven reliability of FTS-X freehub No maintenance QRM bearings
Give your bike the Mavic look and feel:
– Large and visible Mavic graphics Straight pull bladed spokes
Specifications:
– Weight: 1700g
Hubs:
– Bearing technology: QRM automatic setting – sealed cartridge
– Axle material: Steel
– Body material: Aluminum
– Axle size: Front 9×100 / rear 9×135 – Quick release only
– Freewheel: Shimano HG road
– Freewheel technology: FTS-X
Rims:
– Braking: Pads
– Material: S6000 Aluminum
– Joint: Pinned
– Internal width: 17 mm
– Tire: Tubetype
– ETRTO size: 559x17C
– Drilling: Traditional (front/rear 20 holes)
– Height: 19 mm
Intended use:
– ASTM category 3: Cross country
– Maximum weight supported by the wheels: Must not exceed 120 kg (bike weight included)
– Minimum tyre size: Width 35mm – pressure max. 7.42Bar/107.62PSI
– Maximum tyre size: Width 62mm – pressure max. 5.7Bar/82.67PSI
In the box:
– Quick release level 1
– User guide
– Rim strip not mounted on wheel
– Valve reducer mounted on wheel
– Cassette washer M9 not mounted on the rear wheel
Spokes:
– Shape: Straight, flat, constricted (front and rear opposite freewheel side)
– Material: Steel
– Nipples: Steel, ABS, incolor
– Lacing: Radial (front and rear opposite freewheel side) – crossed 2 (rear freewheel side)
Technology:
FTS-X freewheel technology:
– Force Transfer System X. A further improved FTS free wheel system to meet the demand of intensive MTB riding as closely as possible to make the freewheel mechanism even more hard wearing.
QRM Auto bearing preload technology:
– Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
