Description

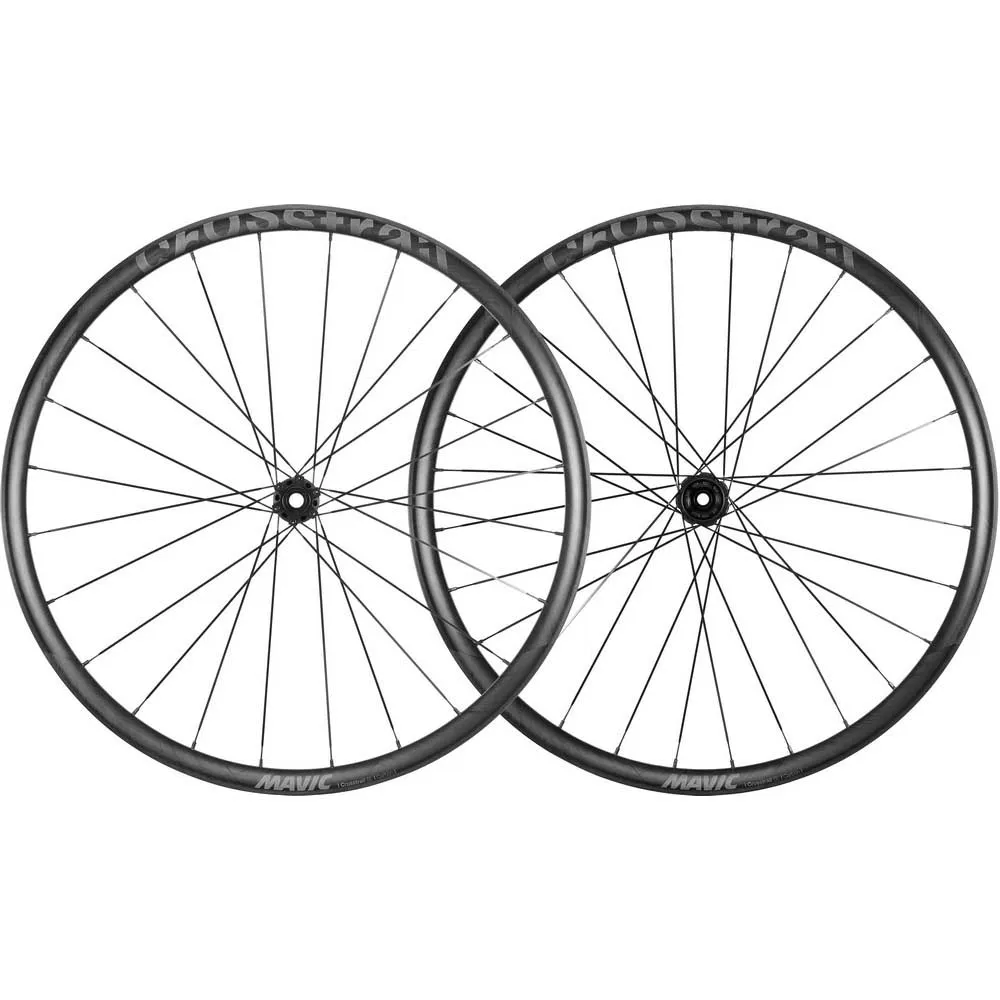

Ultra-strong, agile and lightweight, this Crosstrail sl carbon combines the best of mavic´s technologies, making it your best companion tackle any trail.
Features:
Ultra Robust:
– Its new lower profile and UD2 carbon construction make it the strongest carbon trail wheel in its segment.
The lightest e-bike wheel:
– The use of carbon fibre gives it a record weight, making it the lightest in its segment.
Improved responsiveness:
– The reduced inertia of the rim combined with Infinity hub technology means instant acceleration.
Specifications:
– Weight: 1690 grams
Hubs:
– Freewheel technology: Instant Drive 360
– Bearing technology: QRM automatic setting sealed cartridge
– Axle size: Front 15×110 / rear 12×148
– Axle material: Aluminum
– Body material: Aluminium
– Freewheel: Shimano MS / Sram XD MTB
– Body design: Infinity
– Disc standard: Center Lock®
Rims:
– Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
– Braking: Disc
– Internal width: 30 mm
– ETRTO size: 622x30TC
– Profile: Asymmetrical
– Material: 100% Carbon fiber with UD external layer
– Drilling: Traditional (front 24 holes and rear 28 holes)
Spokes:
– Material: Steel
– Nipples: Steel, ABS
– Shape: Straight, extra-flat, constricted, antirot (front and rear)
– Lacing: Crossed 2 (front) crossed 3 (rear)
Intended use:
– ASTM category 4: Enduro and trail riding
– Minimum tyre size: Width 52mm pressure max. 2.95Bar/43PSI
– Maximum tyre size: Width 76mm pressure max. 2.45Bar/36PSI
– Maximum weight supported by the wheels: Must not exceed 135 kg (bike weight included)
Compatibility:
– Freewheel body: Convertible Shimano HG MTB steel
– Front axle adapters: 15×110 Convertible to 9×110
– Front axle adapters: Convertible to 15x31mm with Torque Cap
– Freewheel body: Convertible Shimano HG MTB aluminium
– Rear axle adapters: 12×148 Convertible to 9×141
In the box:
– User guide
– UST valve not mounted on wheel
– Rim tape mounted on wheel
– Multifonction adjustment wrench with the rear wheel
– 2 replacement spokes with each wheel
Technology:
Infinity hub design:
– Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.
QRM Auto bearing preload technology:
– Bearing Quality Mavic Auto. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
Instant Drive 360 freewheel technology:
– The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
UST tubeless technology:
– Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
