Description

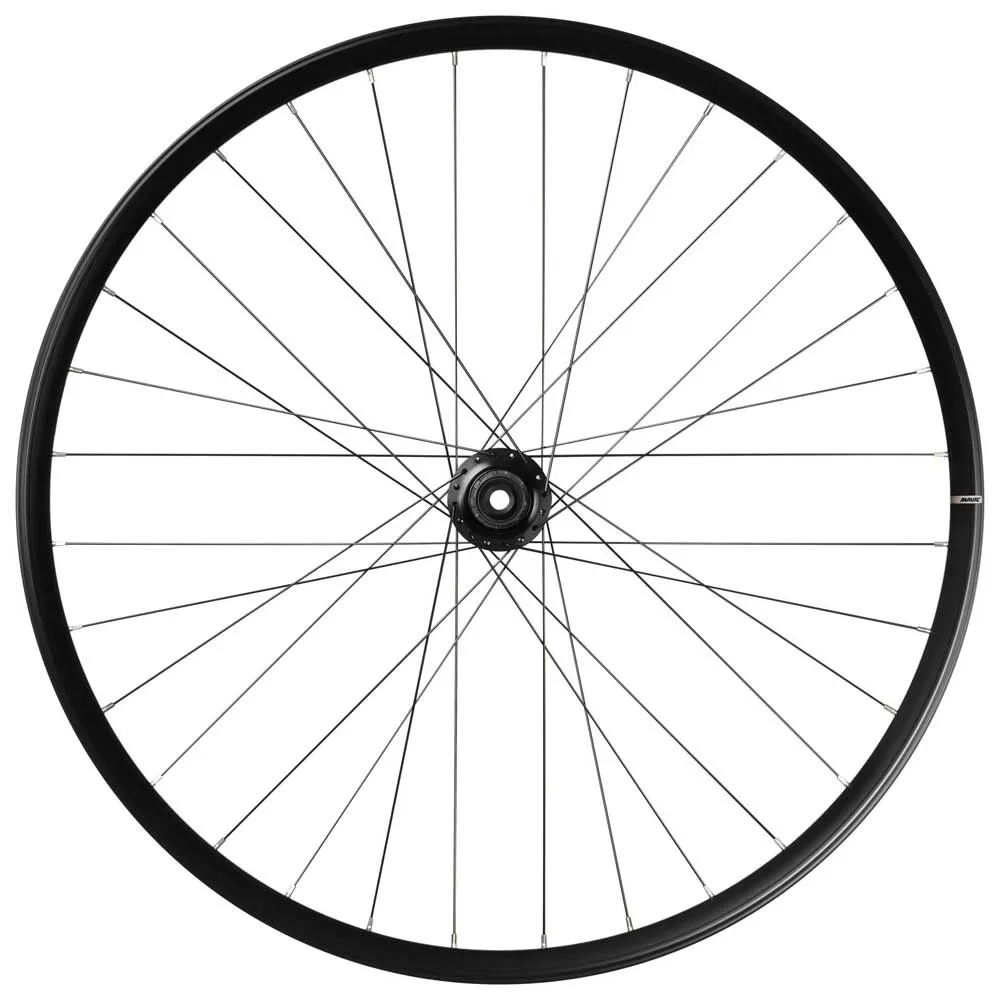

Stable and hardwearing, this mountain bike wheel has been specifically developed for use on e-bikes. Optimized spokes and adapted hub material.
Features:
Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures):
– 20% less risk of puncture with PFP. An e-bike specific innovation to significantly reduce the risk of tire cuts and punctures.
QRM Auto bearing preload technology:
– Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
Instant Drive 360 freewheel technology:
– The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
UST tubeless technology:
– Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
E-bike ready New electric toys, new challenges specific solutions:
– Higher torque and added weight have pushed us to rethink the optimization of our wheels to offer e bike enthusiats performance and reliability. Adapted number and shape of spokes, optimized rim thickness, and even different hub materials
ID360: A simple, reliable yet efficient and easily serviceable freewheel system:
– Dual ratchets freewheel system. Choose between 24t for less drag or 40t for quicker engagement. New seal for worry free ride, but in case it´s a tool-free serviceability.
No compromise on reliability:
– Trying to lower the cost of a product is indeed a matter of compromise, but regarding reliability , we make no difference between our Crossrides and some fancier models. The wheels go through the same lab and field test processes.
Specifications:
Rims:
– Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
– Material: S6000 Aluminum
– Braking: Disc
– Height: 21 mm
– Joint: Sleeved
– Internal width: 30 mm
– Profile: Asymmetrical and hookless
– ETRTO size: 584x30TSS
– Drilling: Traditional (rear 32 holes)
– Weight Rear: 1150 grams
Spokes:
– Shape: Bent radius, round (rear)
– Material: Steel
– Nipples: Steel, ABS
– Lacing: Crossed 3 (rear)
Hubs:
– Freewheel technology: Instant Drive 360
– Bearing technology: QRM automatic setting sealed cartridge
– Axle size: Rear 12×148
– Axle material: Aluminum
– Body material: Aluminium
– Freewheel: Shimano HG MTB / Shimano MS / Single Speed
– Body design: Classic
– Disc standard: 6 Bolts
Intended use:
– ASTM category 3: Cross country
– Maximum weight supported by the wheels: Must not exceed 150 Kg (bike weight included)
– Minimum tyre size: Width 52mm pressure max. 2.35Bar/34PSI
– Maximum tyre size: Width 125mm pressure max. 1.25Bar/18PSI
Compatibility:
– Freewheel body: Convertible Shimano HG MTB steel
In the box:
– User guide
– Rim tape mounted on wheel
Black
