Description

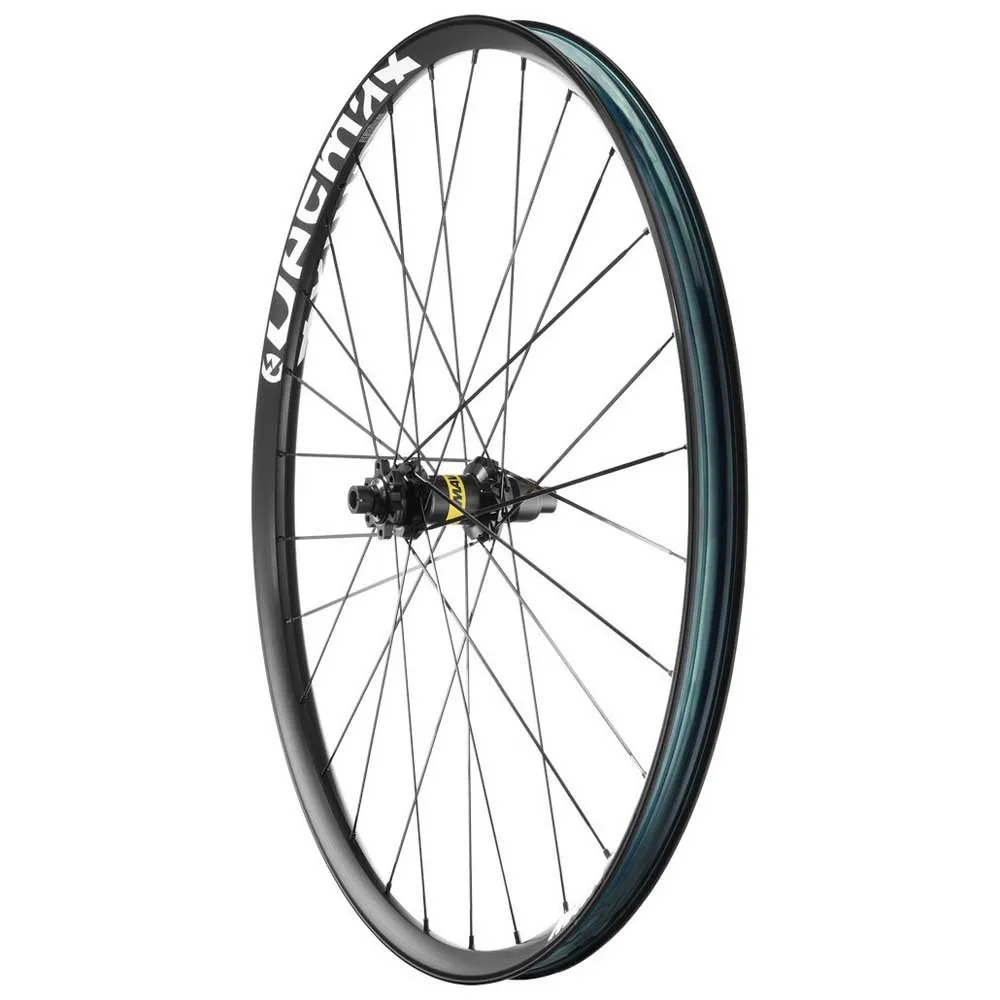

The name E-Deemax has become a reference for E-Bike riders. This new E-Deemax lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price.
A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy.
Our exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tyre can resist to 20% harder impact before being cut.
The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.
As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg. The reinforced spokes should protects against damages, but in any case, each wheel is delivered with 2 spare spokes.
Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.
Main Features:
Strong and durable :
– Welded rim with Pinch Flat Protection (PFP) for less risk of flat Super strong rim profile New Infinity hub design specifically made for the rigor of E-MTB riding
Made to handle the extra power and torque of E-Bike motor:
– 28 bladed reinforced spokes
– Proven reliability of ID360 double ratchet freewheel system
– Maximum load supported byt the wheel : 180kg
– Steel freewheel body for improved resistance
Improved tubeless compatibility:
– Wider rim central channel to ease installation of reinforced tyres
– Tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat
Specifications:
– Weight: Rear 1144g
Rims:
– Material: Maxtal
– Height: 22 mm
– Joint: SUP welding technology
– Internal width: 30 mm
– Drilling: traditional rear 28 holes
– Braking: disc
– Profile: asymmetrical
– ETRTO size: 584x30TC
– Tire: UST Tubeless Ready – Use with Mavic Tubeless Tape
Spokes:
– Material: steel
– Shape: straight, flat, antirot rear
– Nipples: steel, ABS
– Lacing: crossed 3 rear
Hubs:
– Body material: aluminium
– Body design: INFINITY
– Disc standard : 6 Bolts or Center Lock®
– Axle material: aluminum
– Axle size: rear 12×148
– Freewheel technology: Instant Drive 360
– Freewheel: Shimano MS / Sram XD MTB
– Bearing technology: QRM automatic setting – sealed cartridge
Compatibility:
– Freewheel body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
– Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
– Rear axle adapters: 12×148 convertible to 9×141 (kit V2510801 sold separately)
Intended use:
– Minimum tyre size: width 52mm – pressure max. 2.95Bar/43PSI
– Maximum tyre size: width 76mm – pressure max. 2.45Bar/36PSI
– ASTM category 5 : gravity riding focused on the descent
– Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
Technology:
Maxtal aluminum:
– Light and strong. Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.
Instant drive 360 freewheel:
– The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
UST tubeless:
– Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
Black / White
