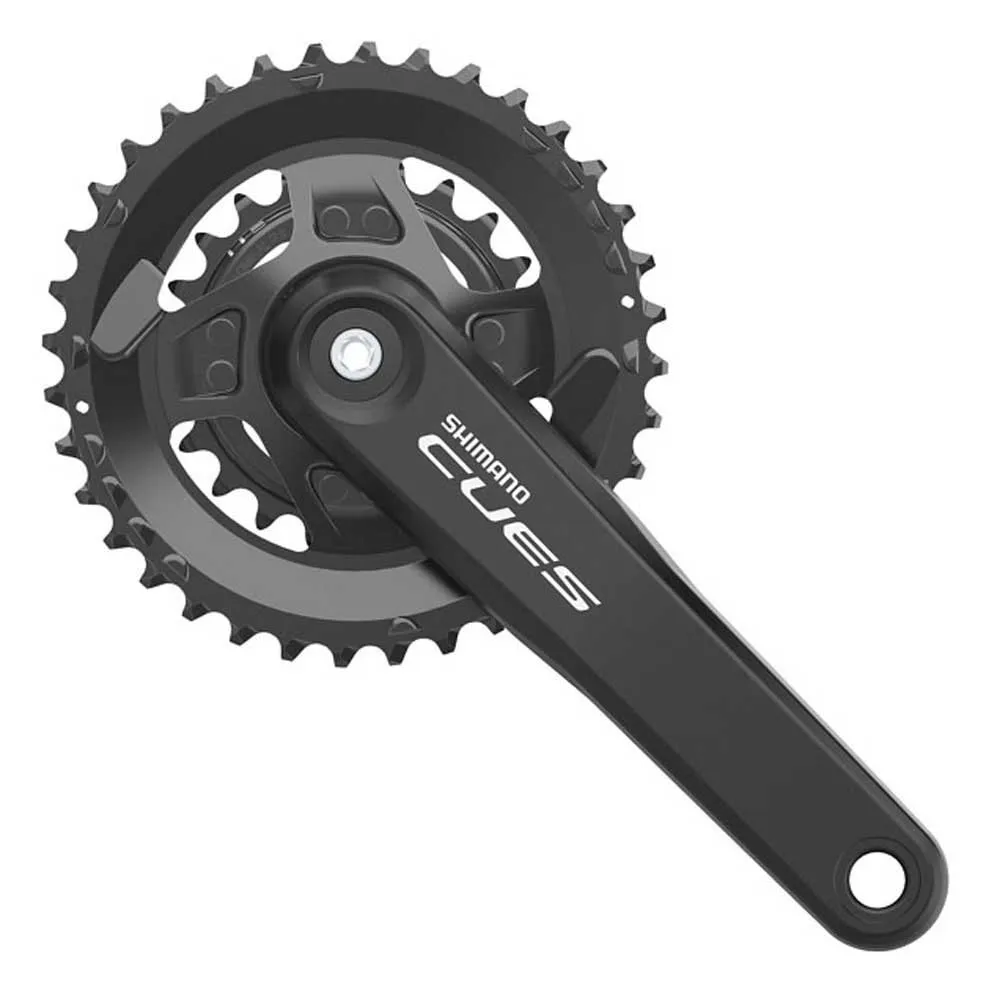

Description

Reliable Performance And Smooth All-Terrain Pedaling Spend More Time Enjoying The Freedom Of Trekking With This Crankset´s Seamless And Efficient Pedaling. It Is Available In Three Wide-Range Options: 46-30t, 40-26t, Or 36-22t.
Features:
– 2-Piece Crankset Increases Rigidity Of Crankset With Less Weight And Transmits Pedaling Force Efficiently
– Chain Case Only Compatible With 46-30t
Specifications:
– Series: Cues U4000 Series
– Rear Speeds: 11/10/9 (36-22t, 40-26t), 10/9 (46-30t)
– Compatible Chain: Link glide, Hg 11-Speed
– Chain Line (Mm): 48.8
– O.L.D.|Thru (Mm): 142
– O.L.D.|Qr/Nut (Mm): 135
– P.C.D. (Mm): Riveted
– Spider/Gear Arms: 4
– Chainring Combination: 36-22t, 40-26t, 46-30t
– Q-Factor (Mm): 180
– Optional Chain Guard|With Chain Guard: X (40-26t, 46-30t)
– Optional Chain Guard|Without Chain/Bash Guard: Yes
– 2-Piece Crankset: Yes
– Compatible Bottom Bracket Type|Outboard: Yes
– Recommended Bottom Bracket|Threaded (Normal): Bb-Mt501
– Recommended Bottom Bracket|Threaded (Chain Case): Bb-Mt501
– Recommended Bottom Bracket|Press-Fit: Bb-Mt500-Pa
– Chain Case Compatible: X (46-30t)
– Crank Fixing Screw Included: Yes
Technology:
2-Piece Crank Set:
– Integrated Crank Arm And Bottom Bracket
– Increased Rigidity With Less Weight
– Wider Bearing Positioning
– Rigidity Is Enhanced And Pedaling Force Is Efficiently Transmitted
– Precision Bearings
– Low Maintenance And Simplified Installation
Black
