Description

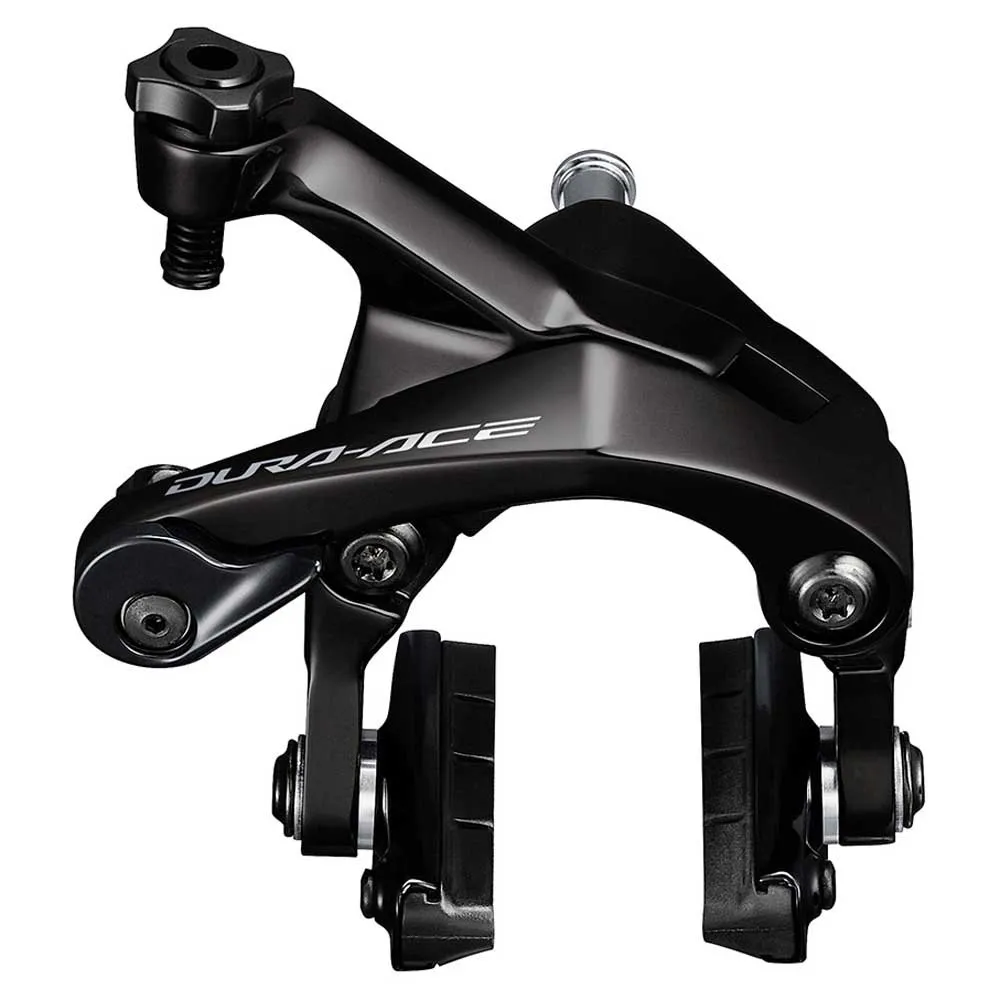

DURA-ACE – Dual-Pivot – Brake Caliper – SLR-EV – Rim Brake
With SHIMANO´s SLR-EV dual symmetric pivot design, the short-arm DURA-ACE R9200 series caliper brakes employ twin bearings and a roller to realize greater efficiency and deliver superior modulation and stopping power. They are offered in traditional and direct mount options.
– Exceptional balance of rigidity, weight and stopping power
– Maximum tire size: 28C
– Lightweight magnesium brake shoe holder
Specifications:
– Average weight: 327 ( /pair)
– Brake type: SLR EV Dual Pivot
– Reach (mm): 51
– Assembly pivot nut (mm)_Front (mm)_10.5: Yes
– Assembly pivot nut (mm)_Front (mm)_12.5: Yes
– Assembly pivot nut (mm)_Front (mm)_18.0: Yes
– Assembly pivot nut (mm)_Front (mm)_27.0: Yes
– Assembly pivot nut (mm)_Front (mm)_32.0: Yes
– Assembly pivot nut (mm)_Rear (mm)_10.5: Yes
– Shoe angle adjusting: Yes
– Maximum tire size: 28C
– Rim width (mm): 20.8 – 28 mm
– Titanium cable fixing bolt: Yes
– Titanium pivot bolt: Yes
– Cartridge shoe holder: Yes
– Brake shoe_Optional choice: R55C4 Carbon R55C4-A Carbon R55CT4
– Brake shoe_Standard: R55C4
– Compatibility: SLR EV
– Quick release lever: Yes
– Tire guide bumpers: Yes
Technology:
SLR-EV:
– SLR-EV is SLR with a dual symmetric pivot brake caliper. The short-arm brake design employs two bearings and a roller to realize greater efficiency in the pivot area and deliver superior modulation and power for braking. Together with the BC-9000 brake cable, the latest calipers deliver 36% more braking power than SHIMANO’s previous brake model. And we offer 2 axle symmetric brake caliper and fork mount and chain stay mount type (BR-R9100/6810/5810).
