Description

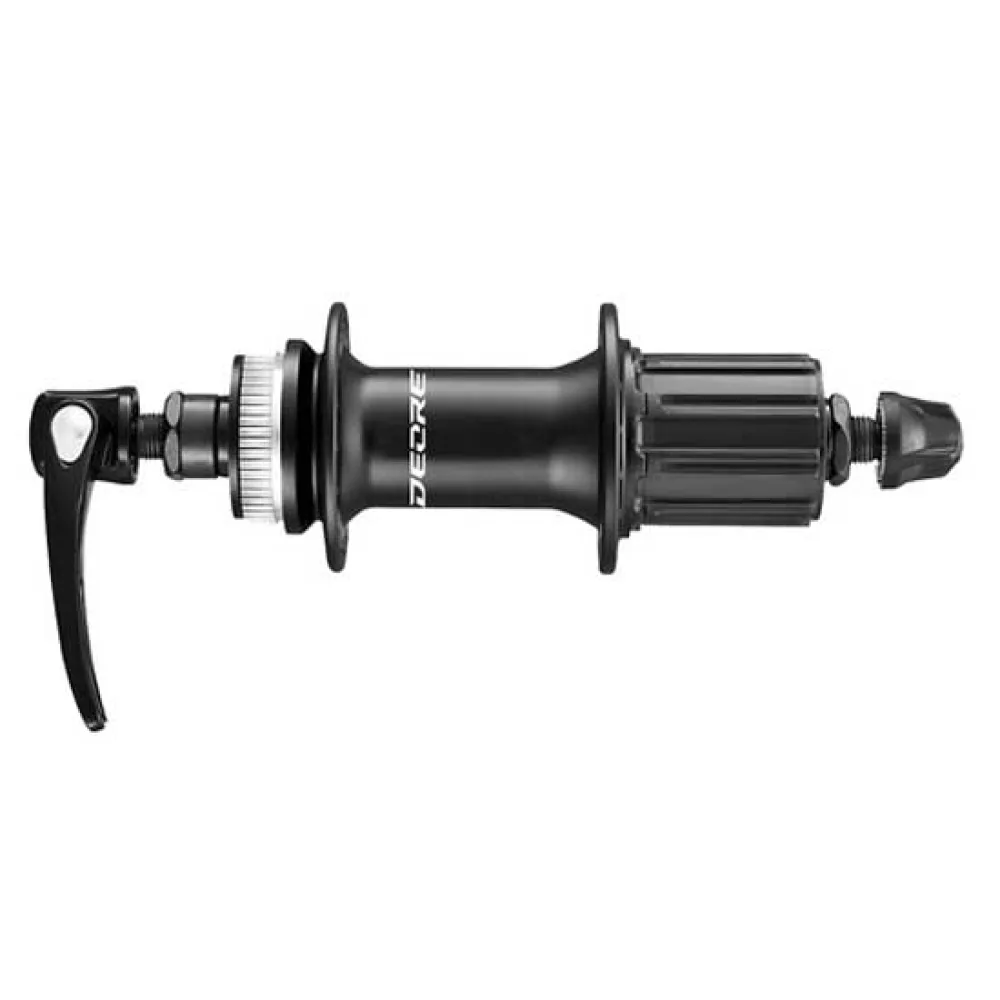

Built to deliver enduring performance, SHIMANO DEORE FH-M5100 FREEHUB is constructed with high-quality seals and angular contact bearings.
Features:
– Durable and reliable
– High-quality sealing and angular contact bearings
– Compatible with 11-speed Linkglide cassettes
– Center Lock disc brake
Specifications:
– Rear speeds: 11/10/9/8
– O.L.D. (mm): 135
– Spoke hole 36H: Yes
– External serration disc brake rotor lock ring Without: Yes
– Internal serration disc brake rotor lock ring Without: Yes
– Axle fixing method: Quick release
– Quick release skewer length (mm) 168: Yes
– Quick release skewer length (mm) 173: Yes
– Flange distance (mm): 55.45
– Offset (mm): 7.6
– P.C.D. left / right (mm): 45
– Flange diameter left / right (mm): 53.8
– Spline type HG spline M (10/9/8-speed, MTB 11-speed): Yes
– Engagement type: Pawl ratchet
– Seal Hub: Labyrinth+Contact
– Seal FREEHUB body: Contact
– Internal grease sleeve: Yes
Technology:
Center Lock:
– The Center Lock system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
