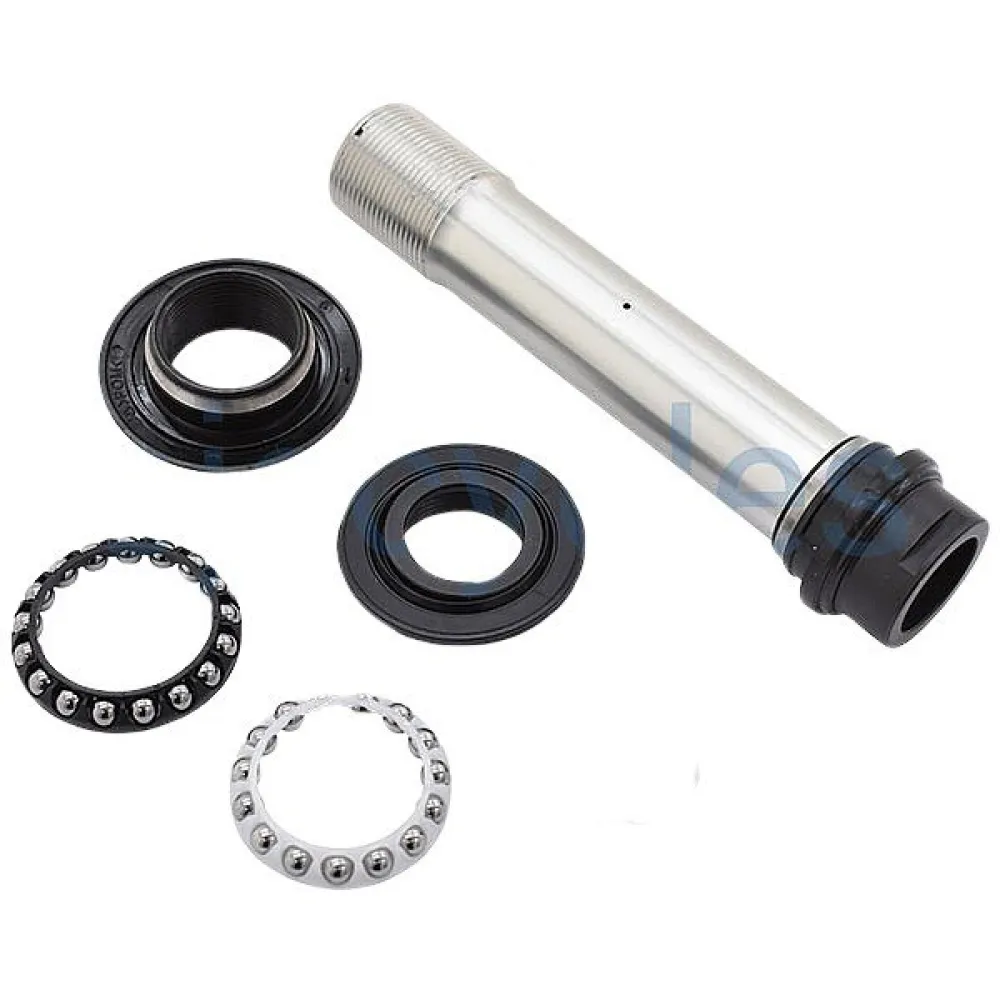

SHIMANO M618B Front Hub Axle | 15x100mm E-Thru
Upgrade your mountain bike´s performance and reliability with the SHIMANO M618B front hub axle. Designed for the modern trail rider who demands durability and precision, this hub is a cornerstone of the trusted DEORE series, offering exceptional value and trail-proven technology. Whether you´re building a new wheelset or replacing a worn-out component, the M618B delivers the smooth-rolling, stiff, and dependable performance that SHIMANO is known for, ensuring you can tackle technical terrain with confidence.
Experience a significant enhancement in steering accuracy and front-end stiffness. The M618B´s robust construction and advanced features work in harmony to provide a responsive and secure ride, making it an ideal choice for cross-country, trail, and all-mountain applications.
Key Benefits & Main Features:
* Enhanced Steering Precision: The 15mm E-Thru axle system provides a torsionally rigid connection between the fork and the hub, dramatically improving steering response and tracking through rough sections and high-speed corners.
* Superior Durability and Weather Resistance: Featuring SHIMANO´s highly effective Labyrinth and Contact sealing system, this hub is expertly protected against mud, water, and dust. This dual-barrier design keeps contaminants out and grease in, extending bearing life and minimizing maintenance.
* Ultra-Smooth Rolling Performance: The hub utilizes adjustable cup and cone bearings, a signature SHIMANO technology. The bearing races are treated with a high-precision Cubic Boron Nitride (CBN) finish, resulting in an incredibly smooth, low-friction rotation for greater efficiency on every ride.
* Effortless & Secure Brake Rotor Mounting: Equipped with the Center Lock disc brake system, installing and removing brake rotors is faster and easier than ever. The splined interface and lockring design provide a secure and rigid mount, ensuring consistent and powerful braking performance.
* Proven DEORE Series Reliability: As part of the SHIMANO DEORE lineup, this hub is built to withstand the rigors of real-world mountain biking, offering a perfect balance of performance, weight, and long-lasting durability.
Axes
The core of this hub´s superior front-end stiffness is its compatibility with modern thru-axle standards. The SHIMANO M618B is engineered specifically for the 15mm E-Thru axle system with a 100mm Over Locknut Dimension (O.L.D.). This tool-free system not only simplifies wheel removal and installation but also creates a significantly stronger and more secure interface than traditional quick-release skewers. This results in less wheel flex under load, more precise handling, and the confidence to push your limits on the trail.
Specifications:
* Weight: approx. 155g
* Axle Length (O.L.D.): 100 mm
* Axle Diameter: 15 mm
* Axle Mounting: 15 mm E-Thru
* Bearing Cone: CBN Finish
* Brake Type: Center Lock Disc
* Flange Distance: 60.2 mm
* Offset: 5.3 mm
* Seal: Labyrinth & Contact
* Spoke Holes: 32
