Description

BRIGHT AND SAFE
The EOX® RL RACK and EOX® RL RACK BRAKE rear lights complement the new EOX® Lights series. They are clearly visible from afar and ensure greater safety at the rear.

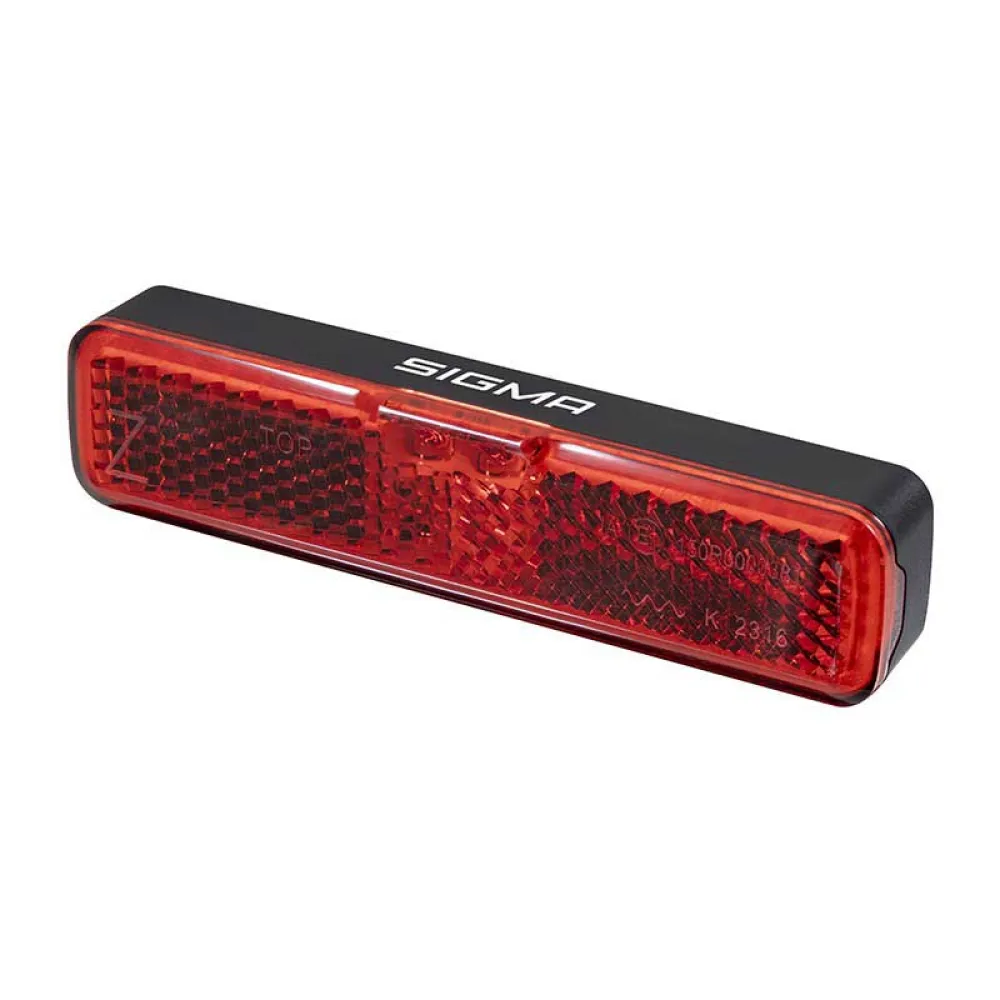

EOX® RL RACK
The EOX® RL RACK makes you highly visible to other road users. So you can safely take part in road traffic.
EOX® RL RACK BRAKE
THE EOX® RL RACK BRAKE also has a brake light function and an emergency brake light function.
Z-REFLEKTOR INSIDE
A light guide on the long side ensures greater visibility.
E-SPECS
The EOX® RACK BRAKE operates in the voltage range from 6 to 48 volts with a power consumption of 0.8 watts.
WEATHERPROOF
EOX® RL RACK and EOX® RL RACK BRAKE are waterproof to IP 44.
QUICK ASSEMBLY
The rear lights are StVZO-approved and can be fitted to the luggage rack in just a few minutes.
PERFECT PARTNER
Here you can see whether your e-bike can be connected to the EOX® RL RACK BRAKE or the EOX® RL RACK.
CHOOSE AND CHECK YOUR E-BIKE COMPATIBILITY:
– E-BIKE COMPATIBILITY
The ROX and EOX series is e-bike ready and can be easily connected to many partner e-bike systems. When your device is connected, the bike-specific values will be displayed.
CHECK WHETHER YOUR E-BIKE IS COMPATIBLE WITH YOUR SIGMA.
Every e-system has requirements that must be considered to ensure compatibility with SIGMA components. You can tell which system your e-bike is equipped with from the brand name on the motor, the handlebar control unit or in the technical information of your e-bike.
BIKE COMPUTER:
CHOOSE YOUR E-SYSTEM AND CHECK COMPATIBILITY:
– BAFANG
– BMZ
– DOMEL
– FAZUA
– FIT
– GIANT
– HEINZMANN
– LEV / ANT+
– MAHLE
– MAXON
– NEODRIVES
– RIDETRONIC
– SACHS
– SHIMANO E-BIKE SYSTEMS
– TQ
– YAMAHA
– ZEHUS
LIGHTS:
CHOOSE YOUR E-SYSTEM AND CHECK COMPATIBILITY:
– BAFANG
– BOSCH
– BROSE
– FAZUA
– GIANT
– MAHLE
– NEODRIVES
– PANASONIC
– SACHS
– SHIMANO E-BIKE SYSTEMS
– SPECIALIZED
– TQ
– YAMAHA
SPECIFICATIONS:
– Maximum light output: EOX RL RACK BRAKE: 8 lumens, EOX RL RACK: 4,2 lumens
– Lighting modes: EOX RL RACK BRAKE: Three light modes: Standard, Brakelight, Emergency-Brakelight / EOX RL RACK: One light mode: Standard
– Lighting type: EOX RL RACK BRAKE: 2 LED + 32 COB LED / EOX RL RACK: 2 LED
– Side visibility: Light Guide
– Weight: 29.9 g (incl. bracket)
– StVZO admitted: yes
– Dimension (W x L x H): 100 x 12 x 21 mm
– Water resistance: IP44
– Function: BRAKE LIGHT/ OHNE BRAKE LIGHT
– Voltage Range: 6-48 V
– Nominal Power: 0.8 W
– Standard Mounting: 50 mm Rackmount
