Description

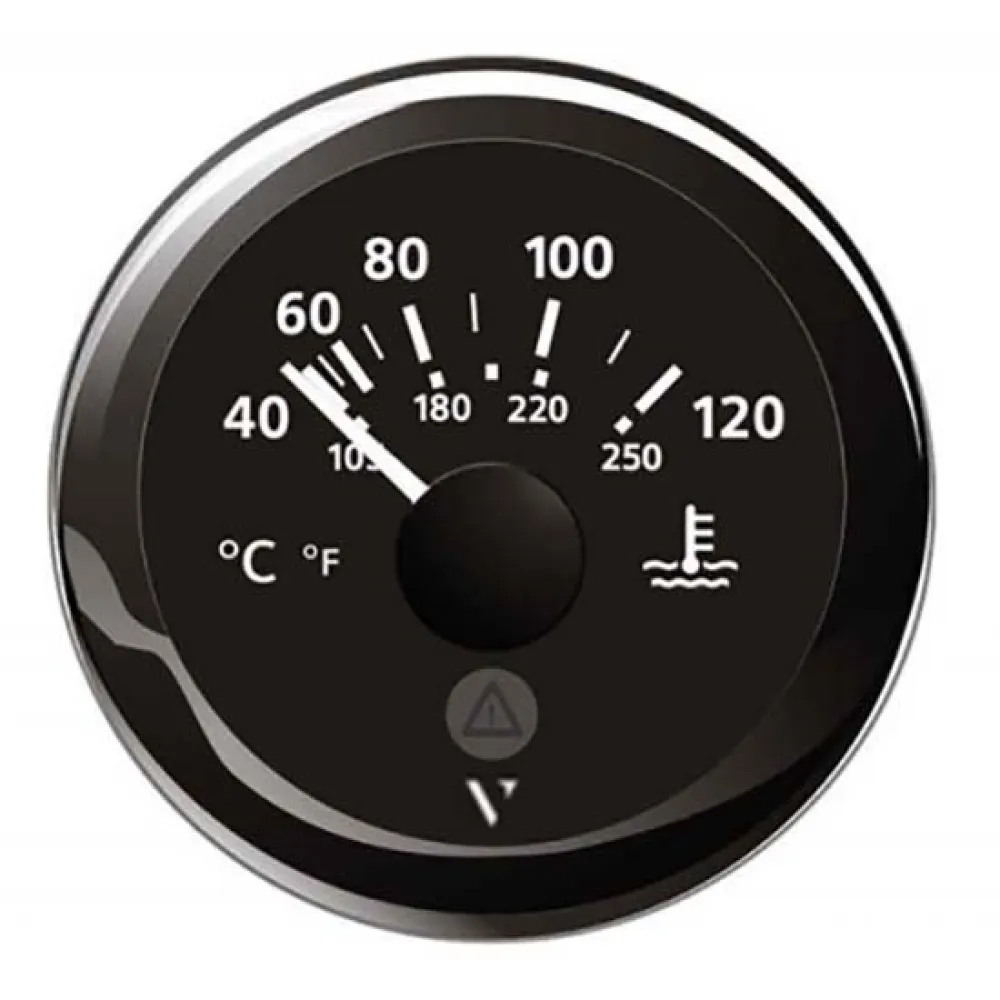

Veratron ViewLine Coolant Temperature 120°C 52mm.
Specifications:
– Panel hole diameter:
52 mm.
– 2 1/16´´.
– Range:
+40°C to +120°C.
– Lens:
Dual.
– Anti-Fog.
– Retail package 1 Temperature gauge.
– Weight:
0.45kg.
– Installation (Hole) diameter and Outside diameter:
52 mm.
– 2 1/16 Inch and 59 mm.
– 2 1/3 Inch.
– Installation depth:
50 mm.
– Locking height with SAnti-fog nut:
0.5 mm.
– 20 mm.
– Locking height with bracket:
2 mm.
– 15 mm (Optional) Functionality:
– Coolant temperature upper scale range:
+40°C to +120°C.
– Coolant temperature under scale range:
+105°F to +250°F.
– Sensor signal input coolant temperature gauge:
Veratron NTC Thermistor 287.4-22.7 Ohm.
– Accuracy:
< 3.6 angular degrees.
– Connection:
Hirschmann 8 pins MQS connector Power supply:
– Operating voltage:
10 to 32 Volt DC.
– Current consumption:
< 140 mA including warning LED.
– Reverse polarity protection:
Yes.
– 5 Minutes.
– Short circuit protection:
Yes.
– 1 Minute Dial & Pointer:
– Deflection angle:
90°.
– Dial Illumination:
Amber LED backlight 605nm.
– Pointer:
White LED backlight.
– Warning LED:
Red (632nm).
– Programming:
Veratron USB software kit Design:
– Model:
Veratron ViewLine Marine.
– Lens:
Dual.
– Anti-glare.
– Anti-Fog.
– Standard bezel:
Round black (Interchangeable) Protection and standards:
– Front protection class:
IP67 (IEC 60529).
– Rear protection class:
IP52.
– Relative humidity:
Maximum 95%.
– Operating temperature:
– 30°C to +80°C (Plastic bezel).
– CE standard:
Yes.
– DNV GL Certification:
Yes.
– Mechanical shock continuous:
25G.
– 6ms.
– 1Hz.
– Mechanical single shock 100G.
– 11ms.
– Free fall test:
1 Meter.
– 3x.
– Housing flame retarding:
UL94-VD.
