Description

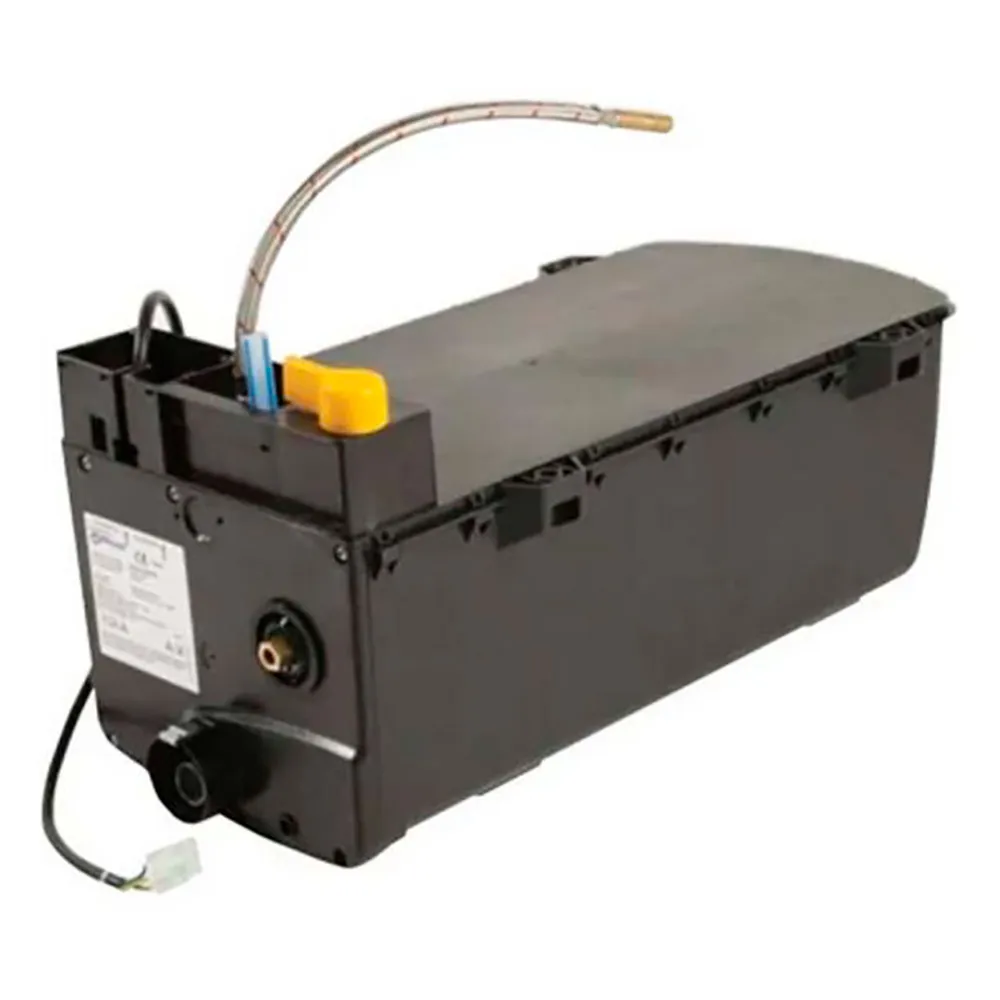

Compact water heater for vehicles and mobile applications that frees up interior space when installed underfloor.
Its lightweight and low-noise design offers fast heating and better temperature maintenance for improved onboard comfort.
It runs on butane/propane gas at 30 mbar (CAT I3B/P) and features electric control at 12 V DC.
Typical consumption is 0.48 A in operation and 0.03 A on standby, with quiescent losses of 43 W.
The thermal output is 1.35 kW and the maximum water temperature reaches ≈70 °C, sufficient for sanitary uses.
The 8-liter tank incorporates a 316L stainless steel cylinder, EPS insulation, and a polypropylene casing with 20% fiberglass to improve impact resistance.
It has IP45 protection, CE marking, and ECE R10 homologation for vehicular environments.
Installation is simple thanks to its 12 mm cold/hot water connections and an easily integrable format: 525 × 262 × 180 mm, 4.0-4.5 kg.
Power can be supplied from the vehicle´s 12 V network.
Its architecture prioritizes space saving, quiet operation, and temperature control.
Main specifications.
Type: gas water heater for underfloor mounting.
Fuel: butane/propane 30 mbar (CAT I3B/P).
Thermal output: 1.35 kW.
Tank: 8 L | Max. temp. approx.: 70 °C.
Quiescent loss: 43 W.
12 V DC electrical: 0.48 A (operation) / 0.03 A (standby).
Protection rating: IP45 | Conformity: CE, ECE R10.
Dimensions (L × W × H): 525 × 262 × 180 mm.
Weight: 4.0-4.5 kg.
Materials: 316L (cylinder), PP 20% GF (housing), EPS (insulation).
Water connections: 12 mm hose barb / 12 mm barb.
Recommended applications.
Motorhomes, caravans, special vehicles, and mobile platforms requiring sanitary hot water with space saving and quiet operation.
Dimension diagram
